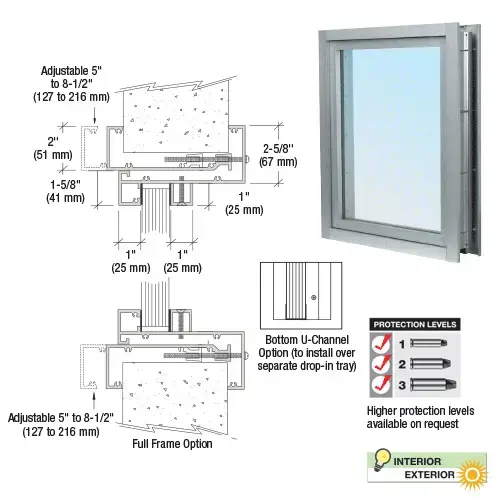

CRL Clamp-On Frame Vision Windows are designed for installation in wall openings having a thickness from 5" to 8-1/2" (127 to 216 mm). The frame has a uniform design on all four sides, and the selected glazing material will be sealed into the frame for a weather tight installation. Vision Windows are commonly installed above built-in Transaction Drawers or Package Receivers. Tightening screws on the interior side of the frame clamps the window securely in the opening. Can also be ordered with U-Channel only under the glazing to enable access to Drop-In Deal Trays. Customer specifies overall width and height when ordering.
SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard ; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard ; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard .
Finishes: Frame - Satin Anodized, Duranodic Bronze, RAL Powder Paint Colors or Custom KYNAR Paint Colors
Instructions Included
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL Satin Anodized Aluminum Clamp-On Frame Exterior Glazed Vision Window
Item #: C0VEA by CR Laurence
Brand: CRL
See reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Custom Anodizing Available
- Clamp-On Frame Vision Window Typically Used Above Built-In Exchange Drawers in Walk-Up Installations
- Drawings and Specifications are Available Online
Customer to Specify
Customer to Specify
Finish
Satin Anodized
Size
Specify
Finish/Color
Satin Anodized
Type
Exterior Glazed
Product Overview
CRL Clamp-On Frame Vision Windows are designed for installation in wall openings having a thickness from 5" to 8-1/2" (127 to 216 mm). The frame has a uniform design on all four sides, and the selected glazing material will be sealed into the frame for a weather tight installation. Vision Windows are commonly installed above built-in Transaction Drawers or Package Receivers. Tightening screws on the interior side of the frame clamps the window securely in the opening. Can also be ordered with U-Channel only under the glazing to enable access to Drop-In Deal Trays. Customer specifies overall width and height when ordering.
SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard ; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard ; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard .
Finishes: Frame - Satin Anodized, Duranodic Bronze, RAL Powder Paint Colors or Custom KYNAR Paint Colors
Instructions Included
