Satin Anodized Aluminum Clamp-On Frame Interior Glazed Exchange Window With 12" Shelf and Deal Tray

Roll over image to zoom in

CRL C01W12A Satin Anodized Aluminum Clamp-On Frame Interior Glazed Exchange Window With 12" Shelf and Deal Tray

Item #: C01W12A by CR Laurence

See reviews See reviews

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Clamp-On Frame Design Incorporates Surround Sound and Built-In Non-Ricochet Bullet Resistant Deal Tray
  • Surround Sound System Allows Natural Voice Transmission

Customer to Specify

Customer to Specify

Shelf Life

12" (305 mm)

Finish

Satin Anodized

Shelf Thickness

2

Wall Thickness

5 To 8 1/2

Shelf Width

Overall Frame Width Less 4

Size

Specify

Glazing Thickness

1/4 To 1-3/8

Glazing Type

Specify

Finish/Color

Satin Anodized

Deal Tray Height (Inches)

1-9/16

Deal Tray Width (Inches)

11

Finish - Shelf & Deal Tray

Brushed Stainless Steel

Deal Tray Depth (Inches)

8 1/4

Glazed

Yes

Shelf Depth (Inches)

12

Deal Tray Depth

8-1/4 in. (209.6 mm)

Deal Tray Width

11 in. (279.4 mm)

Deal Tray Height

1-9/16 in. (39.7 mm)

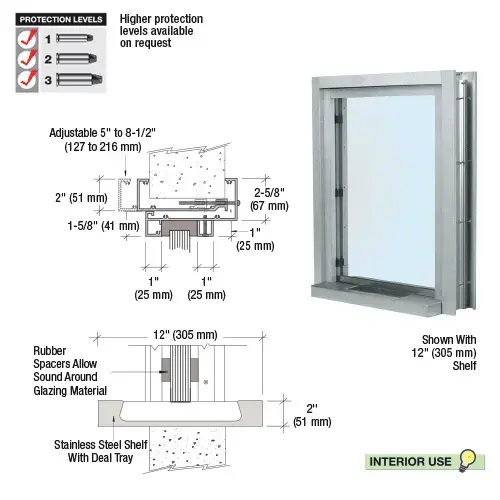

CRL satin anodized aluminum clamp-on frame interior glazed exchange window with 12" shelf and deal tray uses the surround sound voice transmission system and can be installed in wall thicknesses 5" to 8-1/2" (127 to 216 mm). It has 18” deep shelf to provide a convenient writing surface to the customers. Tightening screws on the interior side of the frame clamps the window securely in the opening. The uniform design of the frame provides weather tight installation. It is supplied with a bullet resistant deal tray which can be used for passing currency, credit cards, tickets, or small articles. Its rigid construction provides added strength and unobstructed view through the glazing material. Banks, casino cages, motels, police stations and convenience stores have regular use of this product. Technical specifications: Materials: glazing - 1/4" (6 mm) glass; 1-5/16" (33 mm) level 1 glass; 1-1/4" (32 mm) level 1 acrylic; 3/4" (19 mm) level 1 lexgard; 1-3/8" (35 mm) level 2 glass; 1" (25 mm) level 2 lexgard; 1-7/8" (48 mm) level 3 glass; 1-3/16" (30 mm)?level 3 glass clad polycarbonate; 1-1/4" (32 mm) level 3 lexgard. Finishes: frame - satin anodized Shelf - brushed stainless steel Deal tray: level 1 or level 3 protection DS 06/28/2016

From Manufacturer


CRL Interior Glazed Clamp-On Frame Windows with Surround Sound Voice Transmission System and Brushed Stainless Steel Shelf with Non-Ricochet Bullet Resistant Deal Tray can be installed in wall thicknesses 5" to 8-1/2" (127 to 216 mm). It has 18" deep shelf to provide a convenient writing surface to the customers. Tightening screws on the interior side of the frame clamps the window securely in the opening.

The uniform design of the frame provides weather tight installation. It is supplied with a bullet resistant deal tray which can be used for passing currency, credit cards, tickets, or small articles. Tightening screws on the interior side of the frame clamps the window securely in the opening. Customer specifies overall width and height when ordering.

Its rigid construction provides added strength and unobstructed view through the glazing material. Banks, casino cages, motels, police stations and convenience stores have regular use of this product.


SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm)"Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard.
Finishes: Frame - Satin Anodized or Duranodic Bronze; RAL Powder Paint Colors or Custom Kynar Paint Colors; Shelf - Brushed Stainless Steel #4 Finish
Deal Tray: Level 1 or Level 3 Protection
Instructions Included

Important Notes

CRL recommends a maximum width of 36" (914 mm) when surround sound is used.
