Satin Anodized Aluminum Narrow Inset Frame Exterior Glazed Exchange Window With 18" Shelf and Deal Tray

Roll over image to zoom in

CRL N1EW18A Satin Anodized Aluminum Narrow Inset Frame Exterior Glazed Exchange Window With 18" Shelf and Deal Tray

Item #: N1EW18A by CR Laurence

See reviews See reviews

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Narrow Inset Frame with Stainless Steel Shelf and Built-in Non-Ricochet Bullet Resistant Deal Tray

Customer to Specify

Customer to Specify

Overall Size (w x h)

Customer to Specify

Finish

Satin Anodized

Shelf Size

18"

Shelf Thickness

2

Material

Aluminum

Shelf Width

Overall Frame Width

Window Style

Fixed Single Lite

Size

Specify

Glazing Thickness

1/4 To 1-1/4

Frame Depth

4

Protection Level

Specify (1,2,3)

Glazing Type

Specify

Finish/Color

Satin Anodized

Optional Speak-Thru

Specify

Deal Tray Included

Non-Ricochet Bullet Resistant Deal Tray

Glazed

Yes

Shelf Depth (Inches)

18

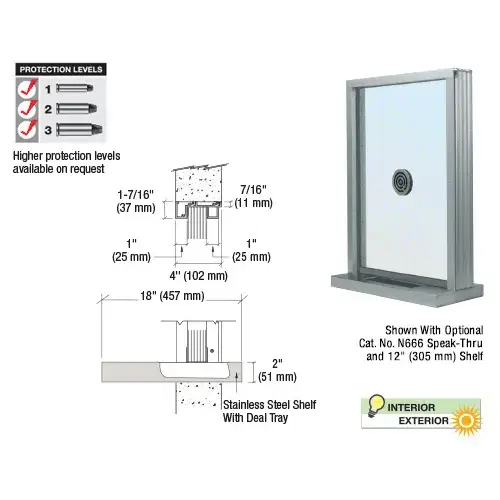

The Exterior Glazed Narrow Inset Frame Windows have a Stainless Steel Shelf with Non-Ricochet Bullet Resistant Deal Tray for passing currency, credit cards, tickets, and small articles. The extruded aluminum frame is designed for installation into walls at least 4" (102 mm) thick. The shelf is typically made in depths of 12" (305 mm) or 18" (457 mm). Added depth of the 18" (457 mm) shelf provides a convenient writing surface on the customer's side. The installer mounts the frame and shelf, then permanently seals the glazing material with the provided glazing tape.
SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" Level 1 Lexgard® (19 mm); 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard®; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®; Shelf - Stainless Steel
Finishes: Frame - Satin Anodized, Duranodic Bronze, RAL Powder Paint Colors or Custom KYNAR® Paint Colors; Shelf - Brushed Stainless Steel #4 Finish
Deal Tray: Level 1 or Level 3 Protection, Weather Flap/Drain Hole Options Available
Instructions included

.
