CRL S1SWA Satin Anodized Aluminum Standard Inset Frame Multi-Lite Window

  • Drawings and Specifications are Available Online
  • Standard Inset Multi-Lite Frame with Shelf and Deal Tray Designed for Multiple Window Units for Arenas, Stadiums, Payment Offices, Theaters, Etc.
See Full Product Description

Additional options:

Have a Question?

Chat with our Expert


Description

  • Drawings and Specifications are Available Online
  • Standard Inset Multi-Lite Frame with Shelf and Deal Tray Designed for Multiple Window Units for Arenas, Stadiums, Payment Offices, Theaters, Etc.

  • Product Description
  • Technical Details 6
  • Product Reviews 1
  • Product Q&A 1
  • Large Order Quote
  • Shipping / Return Policy

Product Description

Customer to Specify

Customer to Specify

Overall Size (w x h)

Customer to Specify

Finish

Satin Anodized

  • Drawings and Specifications are Available Online
  • Standard Inset Multi-Lite Frame with Shelf and Deal Tray Designed for Multiple Window Units for Arenas, Stadiums, Payment Offices, Theaters, Etc.

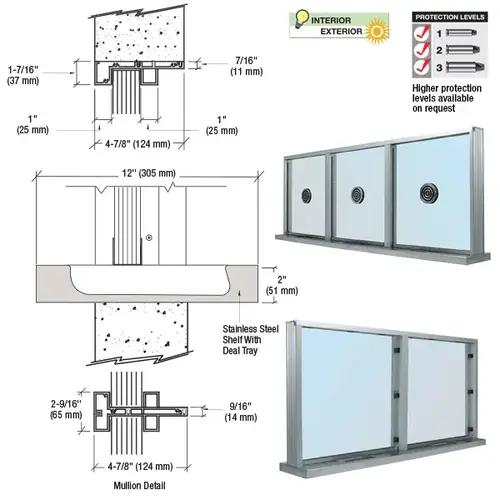

CRL Multi-Lite Standard Inset Frame Windows are commonly used for installations with multiple workstations, such as those found in walk-up ticket offices in arenas, stadiums, movie theaters, and museums. Window options include deal trays, speak-thrus, shelves, dropdowns, returns, and more. Standard Inset Frame is designed for installation into walls at least 4-7/8" (124 mm) thick. An overhang is recommended for exterior use. For additional information, contact DK Hardware Sales Department.
SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard®; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®; Shelf - Stainless Steel
Finishes: Frame - Satin Anodized, Duranodic Bronze, RAL Powder Paint Colors or Custom KYNAR® Paint Colors; Shelf - Brushed Stainless Steel #4 Finish
Deal Tray: Level 1 or Level 3 Protection
Instructions Included
