The
CRL American Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using the
AMR206 Sidelite Mount Keeper. A variety of optional keepers, such as
AMR207 and
AMR208 are available to accommodate most types of installations.
Optional Cylinders include either

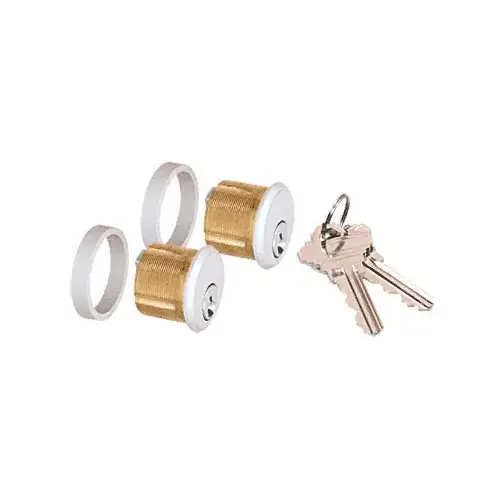

AMR205CC Double Keyed Cylinders or
AMR205CT Single Keyed Cylinder with Thumbturn.
GLASS FABRICATION REQUIRED:Top or Bottom Mount: One 3/4" (19 mm) Diameter Hole and One Corner Notch
Side Mount: One 3/4" (19 mm) Diameter Hole and One U-Cutout (Hole on Top)
COMES WITH: Template and Instructions
DOES NOT INCLUDE: Double Keyed Cylinders;
Keyed Cylinder/Thumbturn;
Optional Keepers (Must Be Ordered Separately)
DOUBLE DOOR APPLICATION: For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
.
