The CRL American Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using theAMR206 Sidelite Mount Keeper. A variety of optional keepers, such as AMR207 and AMR208 are available to accommodate most types of installations.
Optional Cylinders include either AMR205CC Double Keyed Cylinders or AMR205CT Single Keyed Cylinder with Thumbturn.
GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) Diameter Hole and One Corner Notch
Side Mount:
One 3/4" (19 mm) Diameter Hole and One U-Cutout (Hole on Top)
COMES WITH:
Template and Instructions
DOES NOT INCLUDE:
Double Keyed Cylinders;
Keyed Cylinder/Thumbturn;
Optional Keepers (Must Be Ordered Separately)
DOUBLE DOOR APPLICATION:
For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

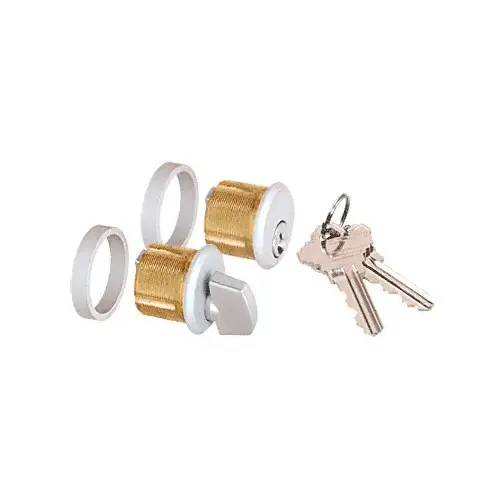

CRL AMR205CTA Satin Anodized AMR Series Keyed Cylinder/Thumbturn for Use With AMR205 Series Patch Lock
Item #: AMR205CTA by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Five Architectural Finishes
- Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
- High Density Cast Body with Lock Mechanism
Bolt Length
11/16" (17.5 mm)
Lock Bolt Diameter
5/8" (16 mm)
Finish
Satin Anodized
Diameter
1-5/32
Finish/Color
Satin Anodized
Product Overview
The CRL American Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using theAMR206 Sidelite Mount Keeper. A variety of optional keepers, such as AMR207 and AMR208 are available to accommodate most types of installations.
Optional Cylinders include either AMR205CC Double Keyed Cylinders or AMR205CT Single Keyed Cylinder with Thumbturn.
GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) Diameter Hole and One Corner Notch
Side Mount:
One 3/4" (19 mm) Diameter Hole and One U-Cutout (Hole on Top)
COMES WITH:
Template and Instructions
DOES NOT INCLUDE:
Double Keyed Cylinders;
Keyed Cylinder/Thumbturn;
Optional Keepers (Must Be Ordered Separately)
DOUBLE DOOR APPLICATION:
For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
