Satin Anodized AMR Series Patch Lock

Roll over image to zoom in

CRL AMR205A Satin Anodized AMR Series Patch Lock

Item #: AMR205A by CR Laurence

See reviews See reviews

In Stock $113.06 /each

SAVE UP TO 11.31

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Five Architectural Finishes
  • Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
  • High Density Cast Body with Lock Mechanism

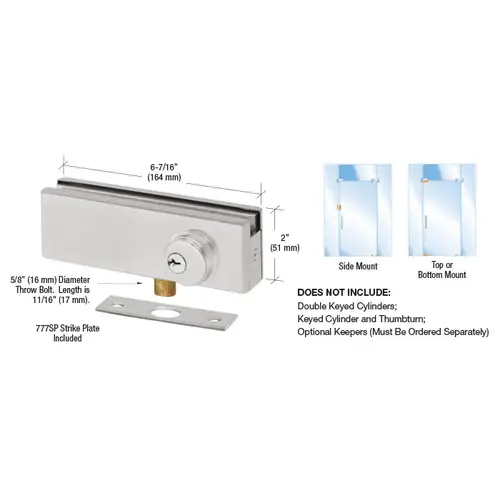

Lock Bolt Diameter

5/8" (16 mm)

Bolt Length

11/16" (17.5 mm)

Finish

Satin Anodized

Height

2

Width

6-7/16

Glazing Thickness

3/8, 1/2

Finish/Color

Satin Anodized


The CRL American Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using theAMR206 Sidelite Mount Keeper. A variety of optional keepers, such as AMR207 and AMR208 are available to accommodate most types of installations.
NOTE: Cylinders not included. Must be ordered separately.
Optional Cylinders include either AMR205CC Double Keyed Cylinders or AMR205CT Single Keyed Cylinder with Thumbturn.
GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) Diameter Hole and One Corner Notch
Side Mount:
One 3/4" (19 mm) Diameter Hole and One U-Cutout (Hole on Top)
COMES WITH:
Template and Instructions
DOES NOT INCLUDE:
Double Keyed Cylinders;
Keyed Cylinder/Thumbturn;
Optional Keepers (Must Be Ordered Separately)
DOUBLE DOOR APPLICATION:
For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
Product Warning:
Cylinders are optional and not included with lock body.

.
