The 1-7/8" x 1-5/8" (47.6 x 89 mm) CRL Custom Narrow Floating Header with Surface Mounted Top Pivots work with PH20 Series and PH21 Series Top Door Patch Hardware Fittings, and with all 3/8" or 1/2" (10 or 12 mm) Heavy Glass Door Rails. When used with CRL Door Rails, you get an even sight line, as the width of the Narrow Header matches the width of the Door Rail. For use with Free Swinging Bottom Pivots or Floor Closers. These Headers are custom fabricated per your specifications.
Note: Length and installation type must be specified when ordering. For additional assistance regarding other possible configurations, contact DK Hardware Sales Department.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
If the weight of the transom above the header exceeds 100 lbs. (45.4 kg) the transom will need to be supported from the ceiling to take weight off of the header and prevent bowing. The customer can use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact our Technical Sales Department for assistance.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

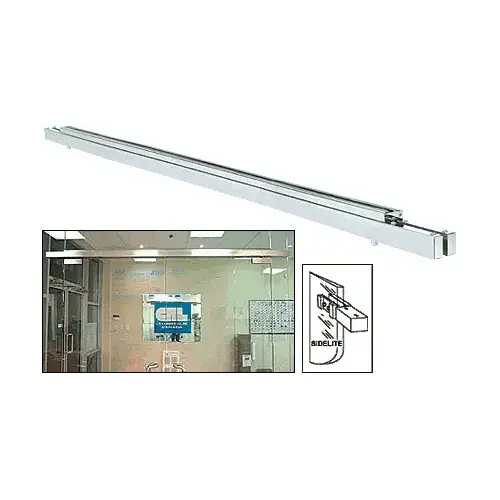

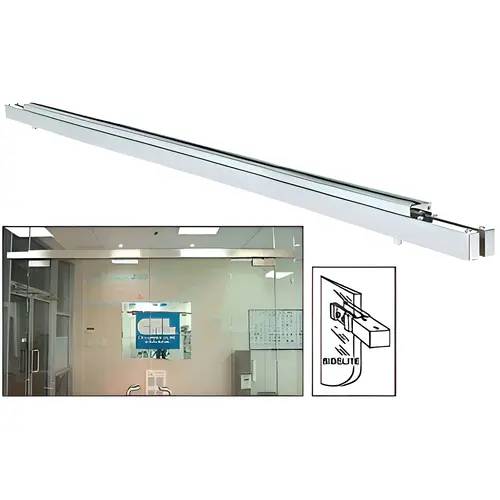

CRL NFH4SACD Satin Anodized Double Narrow Floating Header with Surface Mounted Top Pivots - Custom Length
Item #: NFH4SACD by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Creates an Even Sight Line When Used with CRL Door Rails
- Custom Sizes and Configurations Available
- Six Standard Finishes Available: Satin Anodized, Black Bronze Anodized, Black Powder Paint, Polished Stainless, Brushed Stainless, and Polished Brass
- Supported by Glass Side Panels
Custom
Custom
Finish
Satin Anodized
Glass Size
1/2"
Finish/Color
Satin Anodized
Glazing Thickness
3/8, 1/2
Length
Custom
Door Configuration
Double Door
Product Overview
The 1-7/8" x 1-5/8" (47.6 x 89 mm) CRL Custom Narrow Floating Header with Surface Mounted Top Pivots work with PH20 Series and PH21 Series Top Door Patch Hardware Fittings, and with all 3/8" or 1/2" (10 or 12 mm) Heavy Glass Door Rails. When used with CRL Door Rails, you get an even sight line, as the width of the Narrow Header matches the width of the Door Rail. For use with Free Swinging Bottom Pivots or Floor Closers. These Headers are custom fabricated per your specifications.
Note: Length and installation type must be specified when ordering. For additional assistance regarding other possible configurations, contact DK Hardware Sales Department.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
If the weight of the transom above the header exceeds 100 lbs. (45.4 kg) the transom will need to be supported from the ceiling to take weight off of the header and prevent bowing. The customer can use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact our Technical Sales Department for assistance.
.
