CRL's Lever Lock Housings are easy-to-install and come complete with Housing and Lever Lockset for 3/8" or 1/2" (10 or 12 mm) thick glass. The Entrance and Storeroom models are available with either a Schlage 'C' 6-Pin keyway or a 7-Pin Small Format Interchangeable Cores (SFIC). An ANSI 1-1/4" x 4-7/8" (32 x 124 mm) Strike is included.
ANSI A156.2 Grade 1. UL10C and UBC 7.2
for Positive Pressure
ANSI A117.1 and A.D.A. for Barrier-Free Accessibility
C-UBC California Amended Uniform Builders Code 2001
NFPA-80 National Fire Protection - 1999
NFPA101 National Fire Protection - Life Safety 2000
Product Warning:
Glass Fabrication is required. Installation Instructions and Fabrication Template Included.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

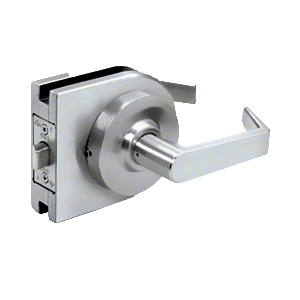

CRL LH10SA Satin Anodized Grade 1 Lever Lock Housing - Passage
Item #: LH10SA by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Use Monolithic Tempered Glass
- Five Architectural Finishes Available
- Four Function Options
- Low Profile Body Design for Use with 3/8" or 1/2" (10 or 12 mm) Glass
- Non-Handed and Reversible
- Supplied with ANSI A156.2 Grade 1 or Grade 2 Lever Lock
Finish
Satin Anodized
Height
4-1/2
Width
4
Cover Style
Round
Glazing Thickness
3/8, 1/2
Finish/Color
Satin Anodized
Product Overview
CRL's Lever Lock Housings are easy-to-install and come complete with Housing and Lever Lockset for 3/8" or 1/2" (10 or 12 mm) thick glass. The Entrance and Storeroom models are available with either a Schlage 'C' 6-Pin keyway or a 7-Pin Small Format Interchangeable Cores (SFIC). An ANSI 1-1/4" x 4-7/8" (32 x 124 mm) Strike is included.
ANSI A156.2 Grade 1. UL10C and UBC 7.2
for Positive Pressure
ANSI A117.1 and A.D.A. for Barrier-Free Accessibility
C-UBC California Amended Uniform Builders Code 2001
NFPA-80 National Fire Protection - 1999
NFPA101 National Fire Protection - Life Safety 2000
Product Warning:
Glass Fabrication is required. Installation Instructions and Fabrication Template Included.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
