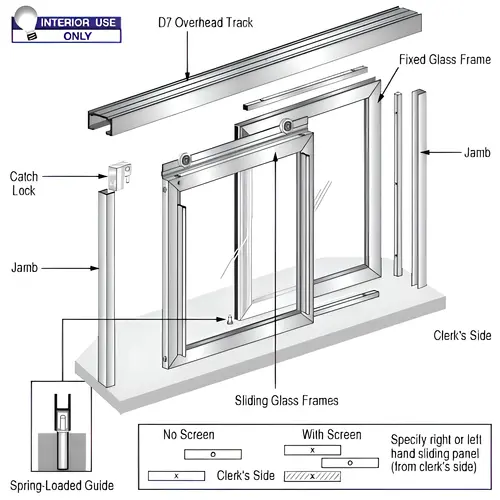

CRL D1038A Horizontal Sliding Florence Model Pass-Thru Assembly With D7 Header / No Screen
Item #: D1038A by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Custom Sized, Ships Knocked-Down
- Satin Anodized or Dark Bronze Finish
- Two Panels: One Fixed, One Sliding
Panels
O = Fixed, X = Sliding
Overhead Track
D7
Screen
Without Screen
Finish
Satin Anodized
Maximum Width
72
Size
Specify
Maximum Height
50
Model
Florence
Finish/Color
Satin Anodized
Configuration (From Clerk's Side)
XO,OX
Panel Designation
O = Fixed, X = Sliding
Panel Quantity
2
TheCRL Florence Pass-Thru Window is the most popular window of its type. Two equal panels (one fixed one sliding) give the benefit of an unobstructed counter surface and an easy rolling overhead track. Ideal for receptionist windows and typical office and pass-thru applications.
Different models are available with two types of headers: The standard D7 Overhead Track, or the D1670 overhead Track which matches 1-3/4" x 3" (44.5 x 76.2 mm) store front tube. Different models are also available with or without screen.
Suggested glass cutting formula for using CRL glazing vinyl is available in the installation guide. Recommended glass sizes are provided by CRL engineering for confirmed orders.
NOTE: These Horizontal Sliding Pass-Thru Assemblies are recommended for interior application only. Each assembly is sold without glass, and includes two kinds of glazing vinyl: for 3/16" (5 mm) or 1/4" (6 mm) glazing. All assemblies are ordered by the frame size, see installation guide for recommended deductions. Frame members are color coded to facilitate assembly and glazing.
Weight: Varies per custom size
Product Warning:
Maximum frame size 72" (1829 mm) W x 50" (1270 mm) H with two equal panels
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
