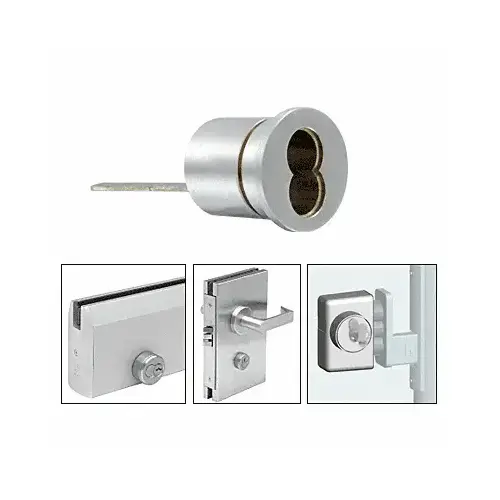

CRL 2CHSA Satin Anodized Rim Cylinder Housings for Small Format Interchangeable Cores (SFIC)
Item #: 2CHSA by CR Laurence
See reviews See
reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Compatible with Any 7-Pin SFIC Type Core
Finish
Satin Anodized
Material
Brass
Length
1-9/32
Type
Mortise
Finish/Color
Satin Anodized
Diameter
1-5/32
CRL Mortise Housings for 7-Pin Small Format Interchangeable Cores (SFIC) are used to replace any of our Mortise Keyed Cylinders with an 'interchangeable core' system. Easily convert any of our Door Rails with locks, 4" x 10" and 6" x 10" Center Locks, or Panic and Deadbolt Handles to an 'interchangeable' core system. Simply remove the existing mortise cylinder, choose the appropriate cam, and install the new Housing and Core. It's that easy!
CRL Rim Cylinder Housings for 7-Pin Small Format Interchangeable Cores (SFIC) come standard in our Locking Ladder Pulls featuring the interchangeable cylinder core option or can be used wherever these type cylinders are required. SFIC Core must be ordered separately.
ORDERING INFORMATION:
• Each Mortise Housing comes with a 1/2" (12 mm) tall cylinder ring and one DRA10CAM (installed), one DRACAM, and one DRA610CAM for easy conversion.
• Not compatible with larger 'removable' core systems.
• When Mortise Housings are used with CRL Low Profile Wedge-Lock® Door Rails an additional DRA256 Series Cylinder Ring must be ordered separately.
• SFIC Cores must be ordered separately.
.
