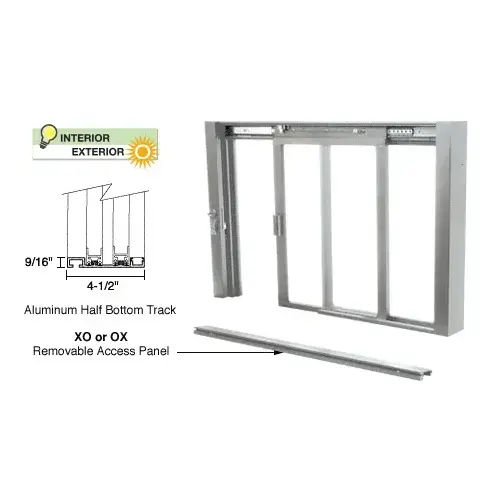

CRL SCDW1801A Satin Anodized Self-Closing Deluxe Sliding Service Windows with Aluminum Half Bottom Track

Item #: SCDW1801A by CR Laurence

See reviews

Roll over image to zoom in

CRL SCDW1801A Satin Anodized Self-Closing Deluxe Sliding Service Windows with Aluminum Half Bottom Track

Item #: SCDW1801A by CR Laurence

See reviews See reviews

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Each Unit is Custom Fabricated to Fit Opening
  • One Fixed and One Sliding Panel Configuration
  • Self-Closing Mechanism and Self-Latching Handle Included
  • Removable Header Access Panel for Easy Servicing
  • Drawings and Specifications are Available
  • Available in Stock and Custom Finishes

Configuration

XO or OX

Panels

O = Fixed, X = Sliding

Sill Condition

Aluminum Half Bottom Track

Configuration*

XO or OX

Finish

Satin Anodized

Glazing Thickness

1/4 To 1/2

Screen

No

Options

Fly Fan Switch

Glazing Type

Specify

Finish/Color

Satin Anodized

Configuration (From Clerk's Side)

XO,OX

Sill Height (Inches)

9/16

Panel Designation

O = Fixed, X = Sliding

Glazed

Yes

Material

Aluminum

CRL "SCDW" Series service windows have automated closing mechanisms required ideally for the fast food industry. Self-closing feature enables trouble free operations. These service windows ideally sustain high usage and can be used for either interior or exterior purposes. As these units are custom built, we will ensure that the specifications are being taken care by our professionals and the product is manufactured as per the customer needs and expectation DS 06/28/2016

From Manufacturer


CRL "SCDW" Series Service Windows incorporate the self-closing feature typically required by the fast food industry. These high quality windows are manufactured for interior or exterior, high or low usage applications. Self-Closing function is provided with high quality components designed for trouble-free operation.
Since each unit is custom built to your specifications, we will work with you to design a unit that best suits the requirements of the installation. Glazing and sill conditions will be discussed, and our Transaction Hardware professionals will help you select the options that will result in a window that meets your customer's needs and expectations.
For additional information, contact DK Hardware Sales Department.
SPECIFICATIONS:
Materials: Aluminum Extrusions; Pile Weatherstrip; Glazing Vinyl; Stainless Steel Shelf or Sill
Finishes: Satin Anodized, Bronze Anodized, Powder Painted or KYNAR® Painted
Glazing Options: 1/4" to 1/2" (6 to 12 mm) Tempered, Laminated or Tinted Glass; 1/2" (12 mm) Insulating Glass Unit
Option: Fly Fan Switch
To Determine Rough Opening: Add 1/2" (12 mm) to width; 1/4" (6 mm) to height of frame, including the track, sill or shelf.
NOTE: 26" (660 mm) is the minimum frame width for SCDW Series Windows.
