The CRL Sofia Free Swinging Interior Door Hinge is available in satin anodized finish on solid aluminum construction, and comes complete with a surface mount bracket and installation screws.
This Hinge will swing open to 180 degrees. It can accommodate 5/16" or 3/8" (8 or 10 mm) fully tempered glass with a maximum weight of 99 lbs. (45 kg), and a width of 39" (990 mm) per pair of hinges. Glass Fabrication: Two 5/8" (16 mm) holes required per hinge.
For companion lock sets see our PTH Series Latches.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

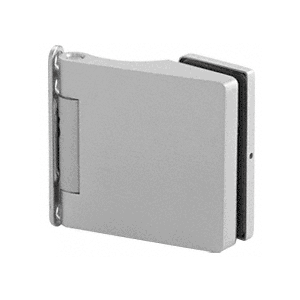

CRL PTH353SA Satin Anodized Sofia Free-Swinging Interior Door Hinge
Item #: PTH353SA by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- For 5/16" or 3/8" (8 or 10 mm) Tempered Glass
- Satin Anodized Finish
- Solid Aluminum Construction
Finish
Satin Anodized
Maximum Panel Weight (Pounds)
100
Glass Mounting Holes Required
2
Glass Mounting Holes Diameter (Inches)
5/8
Glazing Thickness
5/16, 3/8
Finish/Color
Satin Anodized
Glass Mounting Holes Diameter
5/8 in. (16 mm)
Maximum Panel Weight
100 lbs. (45.4 kg)
Product Overview
The CRL Sofia Free Swinging Interior Door Hinge is available in satin anodized finish on solid aluminum construction, and comes complete with a surface mount bracket and installation screws.
This Hinge will swing open to 180 degrees. It can accommodate 5/16" or 3/8" (8 or 10 mm) fully tempered glass with a maximum weight of 99 lbs. (45 kg), and a width of 39" (990 mm) per pair of hinges. Glass Fabrication: Two 5/8" (16 mm) holes required per hinge.
For companion lock sets see our PTH Series Latches.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
