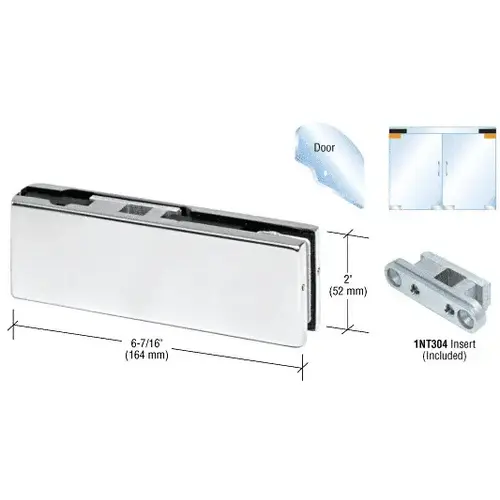

CRL PH20BA Satin Anodized Top Door Patch Fitting with 1NT304 Insert
Item #: PH20BA by CR Laurence
See reviews See
reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- 2-3/4" (70 mm) Pivot Setback
- For Use with Overhead Concealed Door Closers
- Use Monolithic Tempered Glass
- For 3/8" or 1/2" (10 or 12 mm) Glass
Finish
Satin Anodized
Pivot Backset (Inches)
2-3/4
Height
2
Glazing Thickness
1/2 , 3/8
Length
6-7/16
Finish/Color
Satin Anodized
Type
Top
The CRL Top Door Patch Fitting includes the 1NT304 Insert for use with our Overhead Concealed Door Closers that have a 9/16" (14 mm) square and 3/4" (19 mm) long spindle. Finished covers are available in five standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.
Glass Fabrication Required: One 3/4" (19 mm) diameter hole and corner notch.
Product Warning:
These fittings are not for use with Laminated Glass.
The following guidelines are to be used when making a 1/2" glass door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
.
