CRL's 12 ft (3.66 m) Low Profile Rolling Track Assemblies are packaged to contain the Extrusions, Wheels, and Guides you will need to complete your custom project. Designed for 1/4" (6 mm) tempered glass doors, these Track Assemblies have long been a popular choice for display cases, trophy cases, china cabinets, as well as cases for any retail store application. Choose from either Nylon or Steel Ball Bearing Wheel Assemblies for years of smooth and reliable service. The versatility of this track system allows for design flexibility. Optional locking hardware is available. For dry glazing with 1/4" (6 mm) glass use Cat. No. GC728C Vinyl (sold separately).

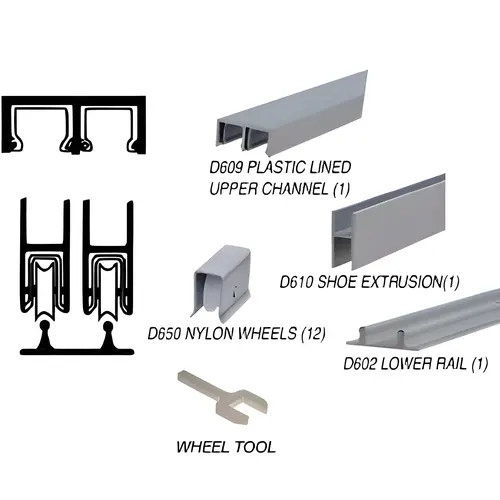

Included Components:
D609A - CRL Satin Anodized Aluminum Plastic Lined Double Upper Channel
D602A - CRL Satin Anodized Aluminum Lower Channel for Deep Recess Installations
D610A - CRL Satin Anodized Aluminum 'H' Bar for Use on All CRL Track Assemblies
D650 - CRL Standard Nylon Assembly for H-Bars
D9650 - CRL Wheel Tool
NOTE: Maximum suggested panel size is 36" W x 48" H (914 mm x 1.22 m).
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL D2204A Satin Anodized Track Assembly D609 Upper and D602 Lower Track with Nylon Wheels 144" Stock Length
Item #: D2204A by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 12' (3.66 m) Length
- An Excellent Choice for Any Project
- Choose From Two Styles of Upper Channel
- D2204 Series
- With D650 Nylon Wheels
Length
12' (3.66 m)
Shipping Weight
4 lb (1.81kg)
Finish
Satin Anodized
Wheels Type
Nylon
Type
With Nylon Wheels
Material
Aluminum
Wheel Type
Nylon
Glazing Thickness
1/4
Finish/Color
Satin Anodized
Anti-Lift Feature
No
Product Overview
CRL's 12 ft (3.66 m) Low Profile Rolling Track Assemblies are packaged to contain the Extrusions, Wheels, and Guides you will need to complete your custom project. Designed for 1/4" (6 mm) tempered glass doors, these Track Assemblies have long been a popular choice for display cases, trophy cases, china cabinets, as well as cases for any retail store application. Choose from either Nylon or Steel Ball Bearing Wheel Assemblies for years of smooth and reliable service. The versatility of this track system allows for design flexibility. Optional locking hardware is available. For dry glazing with 1/4" (6 mm) glass use Cat. No. GC728C Vinyl (sold separately).
Included Components:
D609A - CRL Satin Anodized Aluminum Plastic Lined Double Upper Channel
D602A - CRL Satin Anodized Aluminum Lower Channel for Deep Recess Installations
D610A - CRL Satin Anodized Aluminum 'H' Bar for Use on All CRL Track Assemblies
D650 - CRL Standard Nylon Assembly for H-Bars
D9650 - CRL Wheel Tool
NOTE: Maximum suggested panel size is 36" W x 48" H (914 mm x 1.22 m).
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
