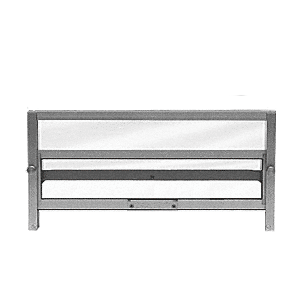

CRL 702A Satin Anodized Vertical Sliding Ticket Window with 18" x 3-1/2" Opening
Item #: 702A by CR Laurence
In Stock $396.07 /each
Buying in bulk
Roll over image to zoom in
CRL 702A Satin Anodized Vertical Sliding Ticket Window with 18" x 3-1/2" Opening
Item #: 702A by CR Laurence
In Stock $396.07 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Available in Two Finishes
- Comes with Glass Installed
- No Grooves Needed in Counter
- Spring-Loaded Latches
Opening Size
18 x 3-1/2 in (457 mm x 89 mm)
Service Opening Size
18" x 3-1/2" (457 x 89 mm)
Overall Size (A X B)
19-1/4" x 8-1/2" (489 x 216 mm)
Overall Size
19-1/4" x 8-1/2" (489 x 216 mm)
Service Opening Size (C x D)
18" x 3-1/2" (457 x 89 mm)
Finish
Satin Anodized
Material
Aluminum
Width
19-1/4
Window Style
Vertical Slider
Glazing Thickness
1/4
Frame Width
5/8
Frame Depth
1
Finish/Color
Satin Anodized
Height
8-1/2
The CRL Vertical Sliding Ticket Window can be installed above the countertop without altering its surface. It is fabricated of heavy gauge extruded aluminum in satin anodized or bronze anodized finishes. The sliding lower panel is glazed with 1/4" (6 mm) clear glass, and has spring-tensioned guides to hold it in the raised position. Two spring-loaded knob latches will secure the window in the closed position. Pile weather stripping along the lower frame prevents drafts. Frame protrudes only 1" (25 mm) on clerk's side, and glass channel installs easily in 1/4" (6 mm) thick glass. Template included. Glass cut-out information and installation guide are available. Custom sized channels to install on thicker glazed units are also available on special order.
SPECIFICATIONS:
Materials: Extruded Aluminum; Tempered Glass; Nylon Pile Weather Stripping
Finishes: Satin Anodized or Bronze Anodized
Glazing: 1/4" (6 mm) Clear Glass
Glass Fabrication: Cut-Out Required
Instructions and Template Included
