The CRL Vertical Sliding Ticket Window can be installed above the countertop without altering its surface. It is fabricated of heavy gauge extruded aluminum in satin anodized or bronze anodized finishes. The sliding lower panel is glazed with 1/4" (6 mm) clear glass, and has spring-tensioned guides to hold it in the raised position. Two spring-loaded knob latches will secure the window in the closed position. Pile weather stripping along the lower frame prevents drafts. Frame protrudes only 1" (25 mm) on clerk's side, and glass channel installs easily in 1/4" (6 mm) thick glass. Template included. Glass cut-out information and installation guide are available. Custom sized channels to install on thicker glazed units are also available on special order.
SPECIFICATIONS:
Materials: Extruded Aluminum; Tempered Glass; Nylon Pile Weather Stripping
Finishes: Satin Anodized or Bronze Anodized Glazing: 1/4" (6 mm) Clear Glass
Glass Fabrication: Cut-Out Required
Instructions and Template Included
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

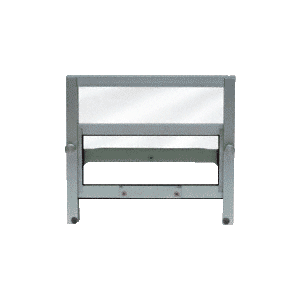

CRL 701A Satin Anodized Vertical Sliding Ticket Window With 8-1/4" x 3-1/2" Opening
Item #: 701A by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Comes with Glass Installed
- No Grooves Needed in Counter
- Spring-Loaded Latches
"A" x "B" Overall Size
9-1/2 x 8-1/2 in (241 x 216 mm)
"C" x "D" Opening Size
8-1/4 x 3-1/2 in (210 x 89 mm)
Overall Size (A X B)
9-1/2" x 8-1/2" (241 x 216 mm)
Service Opening Size (C x D)
8-1/4" x 3-1/2" (210 x 89 mm)
Finish
Satin Anodized
Material
Aluminum
Width
9-1/2
Window Style
Vertical Slider
Glazing Thickness
1/4
Frame Width
5/8
Frame Depth
1
Finish/Color
Satin Anodized
Height
8-1/2
Product Overview
The CRL Vertical Sliding Ticket Window can be installed above the countertop without altering its surface. It is fabricated of heavy gauge extruded aluminum in satin anodized or bronze anodized finishes. The sliding lower panel is glazed with 1/4" (6 mm) clear glass, and has spring-tensioned guides to hold it in the raised position. Two spring-loaded knob latches will secure the window in the closed position. Pile weather stripping along the lower frame prevents drafts. Frame protrudes only 1" (25 mm) on clerk's side, and glass channel installs easily in 1/4" (6 mm) thick glass. Template included. Glass cut-out information and installation guide are available. Custom sized channels to install on thicker glazed units are also available on special order.
SPECIFICATIONS:
Materials: Extruded Aluminum; Tempered Glass; Nylon Pile Weather Stripping
Finishes: Satin Anodized or Bronze Anodized Glazing: 1/4" (6 mm) Clear Glass
Glass Fabrication: Cut-Out Required
Instructions and Template Included
