Satin Anodized Wide U-Channel with Top Load Roll-In Glazing Gasket for 3/8" and 1/2" Glass - 120" Length

Roll over image to zoom in

CRL NH2SASL Satin Anodized Wide U-Channel with Top Load Roll-In Glazing Gasket for 3/8" and 1/2" Glass - 120" Length

Item #: NH2SASL by CR Laurence

See reviews See reviews

In Stock $250.55 /stock length

SAVE UP TO 25.05

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Use Monolithic Tempered Glass
  • Accepts Roll-In Glazing Gasket, Top Pivot Block, and Snap-In Filler Strip
  • Available in Stock Lengths, Fabricated Headers, or Header with Side Pockets for 'Lift and Drop' Panel Installation
  • Channels for 3/8" or 1/2" (10 or 12 mm) and 5/8" or 3/4" (16 and 19 mm) Glass
  • Matches the Width of Door and Sidelite Rails

Height

1-5/8

Length

120

Width

1-7/8

Size

1-7/8" x 1-5/8" (47 x 41 mm)

Finish

Satin Anodized

Type

Wide

Glazing Thickness

3/8 or 1/2

Finish/Color

Satin Anodized

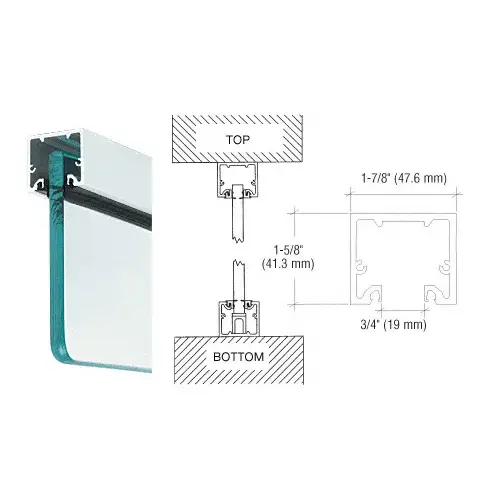

This Aluminum Extrusion was developed with three uses in mind:
(1) As a U-Channel that would be the same width as our Sidelite Rails and Door Rails;
(2) As a Narrow Header that is the same width as our Sidelite Rails and Door Rails, and will accept a Top Free-Swinging Pivot to secure the top of the doors;
(3) As an Even Sight Line System, accomplished by first securing the fabricated Narrow Header to the top of the opening, then securing the Sidelite Rail to the Narrow Header with the 1/4" (6 mm) Header Saddle. All drilling, tapping, and fabrication can be done at your request during manufacturing to save time while installing.
Our policy for Quick Pick products is as follows: These products are stocked in our centralized service center, and upon your order will be shipped on our next re-supply truck to your regional CRL service center. Re-supply trucks ship every week, so if your regional service center does not have stock of the product you require, your order can be filled in just a few days.
You can check the stock availability of any CRL product when you click on the box above marked "CHECK STOCK AVAILABILITY".

.
