Satin Anodized X-/-X Format Sliding Door Entrance System - 4" Top and Bottom Tapered Rail

Roll over image to zoom in

CRL SDR1ASA Satin Anodized X-/-X Format Sliding Door Entrance System - 4" Top and Bottom Tapered Rail

Item #: SDR1ASA by CR Laurence

See reviews See reviews

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • With 4" Tapered DR4T Series Door Rails

Type

4" Top and Bottom Tapered Rail

Door Configuration

X-/-X

Finish

Satin Anodized

Maximum Door Height

108

Maximum Door Width

48

Finish/Color

Satin Anodized

Maximum Panel Weight (Pounds)

234

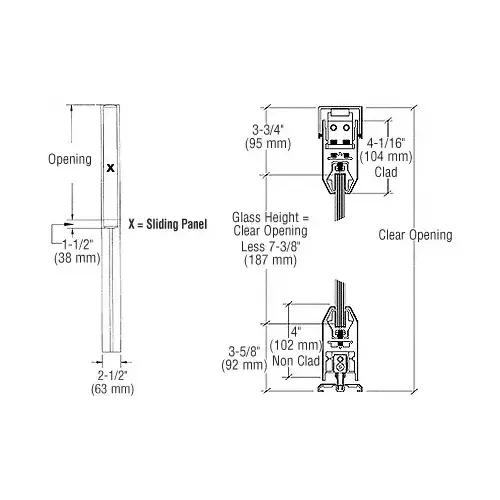

The CRL SDR Bottom Rolling Sliding Door System with 4" (102 mm) Tapered Rails Top and Bottom utilizes our popular Wedge-Lock® Glass Securing System. The DR4T Series Door Rails are used for all door and fixed panels, and are custom fabricated to your specifications. The doors can be ordered with or without locks in the bottom rail. Maximum door width is 48" (1.22 m); maximum door height is 108" (2.74 m), with a maximum weight not to exceed 234 pounds (106 kg).

.
