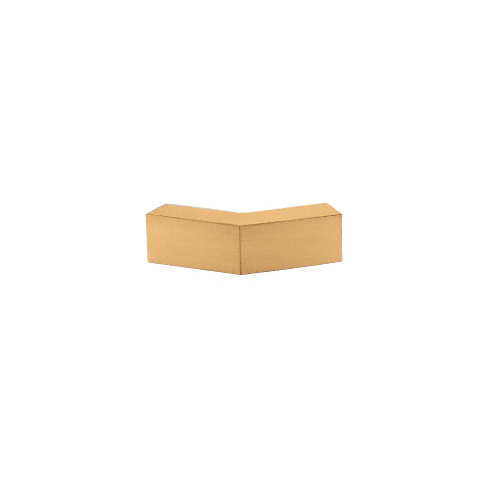

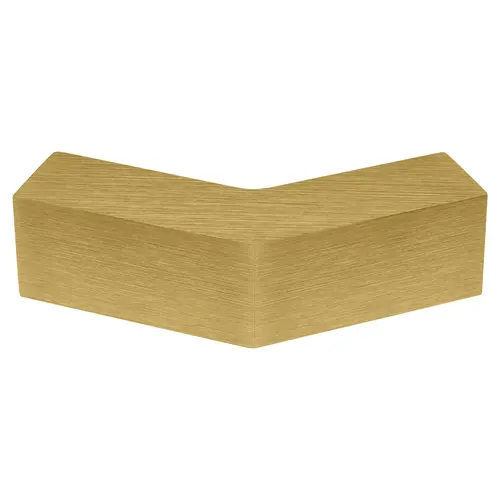

CRL S0GC135SB Satin Brass 135 Degree "Sleeve Over" Glass Clamp
Item #: S0GC135SB by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- For 5/16" to 1/2" (8 to 12 mm) Thick Glass
- Solid Brass
- Use Monolithic Tempered Glass
- Assists With Shear Forces
- Holds Glass Panels in Position While Sealant Cures
1 in (25 mm)
Width Each Leg
2-1/16 in (52 mm)
Glass To Glass
5/16 To 1/2
Glass To Glass Angle (Degrees)
Glass To Glass
CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.
P612** replacement screws
NOTE: These Clamps are not designed to take the place of Headers or a Support Bar. Contact CRL Frameless Shower Technical Sales Department for more details. Can be used on both square cut or mitered panels.
These Clamps are not designed to take the place of Headers or a Support Bar.
