The CRL American Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using theAMR206 Sidelite Mount Keeper. A variety of optional keepers, such as AMR207 and AMR208 are available to accommodate most types of installations.
NOTE: Cylinders not included. Must be ordered separately.
Optional Cylinders include either AMR205CC Double Keyed Cylinders or AMR205CT Single Keyed Cylinder with Thumbturn.
GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) Diameter Hole and One Corner Notch
Side Mount:
One 3/4" (19 mm) Diameter Hole and One U-Cutout (Hole on Top)
COMES WITH:
Template and Instructions
DOES NOT INCLUDE:
Double Keyed Cylinders;
Keyed Cylinder/Thumbturn;
Optional Keepers (Must Be Ordered Separately)
DOUBLE DOOR APPLICATION:
For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
Product Warning:
Cylinders are optional and not included with lock body.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

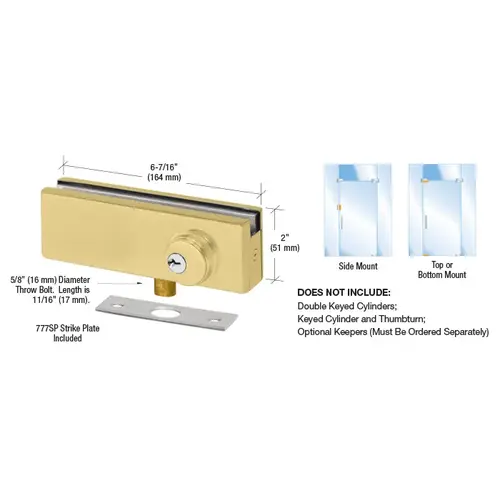

CRL AMR205SB Satin Brass AMR Series Patch Lock
Item #: AMR205SB by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- High Density Cast Body with Lock Mechanism
- Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
- Five Architectural Finishes
Lock Bolt Diameter
5/8" (16 mm)
Bolt Length
11/16" (17.5 mm)
Finish
Satin Brass
Height
2
Width
6-7/16
Glazing Thickness
3/8, 1/2
Finish/Color
Satin Brass
Product Overview
The CRL American Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using theAMR206 Sidelite Mount Keeper. A variety of optional keepers, such as AMR207 and AMR208 are available to accommodate most types of installations.
NOTE: Cylinders not included. Must be ordered separately.
Optional Cylinders include either AMR205CC Double Keyed Cylinders or AMR205CT Single Keyed Cylinder with Thumbturn.
GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) Diameter Hole and One Corner Notch
Side Mount:
One 3/4" (19 mm) Diameter Hole and One U-Cutout (Hole on Top)
COMES WITH:
Template and Instructions
DOES NOT INCLUDE:
Double Keyed Cylinders;
Keyed Cylinder/Thumbturn;
Optional Keepers (Must Be Ordered Separately)
DOUBLE DOOR APPLICATION:
For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
Product Warning:
Cylinders are optional and not included with lock body.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory: Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
