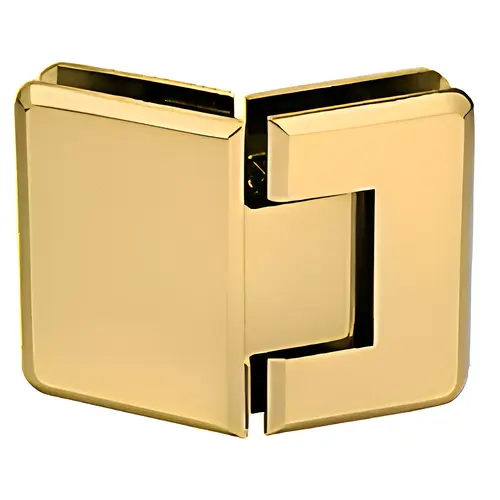

CRL P1N345SB Click To Copy Satin Brass Pinnacle 345 Series Adjustable 135 Degree Glass-to-Glass Hinge

The CRL Pinnacle Adjustable Series of professional hinges is able to accommodate 5/16 to 1/2 inch (8 to 12 millimeter) tempered safety glass. A variety of two styles, Wall Mount and Glass-to-Glass types, gives design flexibility and allows the designer/installer to create custom enclosures limited only by their imagination. The Pinnacle Adjustable Series has taken our popular Pinnacle Series to a new level. Adjustment to accommodate the angle desired (up to 90 degrees) is done after the door is installed. Once the door is hung, simply loosen the allen screws and turn the door to the desired closed position. Tighten the Allen screws in the new self-centering location. The door can swing 90 degrees inwards and outwards (adjusting angle from factory set position will reduce 90 degrees swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degrees inside the shower area, thus having the door close snugly against the jamb.
Using two hinges with 5/16 to 1/2 inch glass (8 to 12 millimeters) the hinge will hold up to 80 pounds (36 kilograms) with a maximum width of 28 inches (711 millimeters).
Using three hinges with 5/16 to 1/2 inch glass (8 to 12 millimeters) the hinge will hold up to 120 pounds (54 kilograms) with a maximum width of 32 inches (813 millimeters).
Specifications:

Glass Thickness: 5/16 to 1/2 inch (8 to 12 millimeter) Tempered Safety Glass

Special Feature: Adjustable to any angle up to 90 Degrees without having to take door down

Construction: Solid Brass

Hinge Swings: 90 Degrees Inwards and Outwards (at factory set position)

Closing Type: Precise closing at 0 Degrees

Cut-Out Required

Includes: One Hinge, Gaskets, Screws and Template
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department at (305) 851-2811, Ext. 7700, or e-mail to DK Hardware Sales.
Maximum Capacities

Using Two Hinges
5/16 or 3/8 Inch (8 or 10 millimeter) Glass
Weight: 80 Pounds (36 kilograms)
Door Width: 28 Inch (711 millimeters)
1/2 Inch (12 millimeter) Glass
Weight: 80 Pounds (36 kilograms)
Door Width: 28 Inches (711 millimeters)

Using Three Hinges
5/16 or 3/8 Inch (8 or 10 millimeter) Glass
Weight: 120 Pounds (54 kilograms)
Door Width: 32 Inches (813 millimeters)
1/2 Inch (12 millimeter) Glass
Weight: 120 Pounds (54 kilograms)
Door Width: 32 Inches (813 millimeters)Important Notes

Door glass width may require alteration from standard clearance deductions when adjusting angles. . Use only the template included with our hinge. Cut-out dimensions for CRL hinges may not match those of other brands. *NOTE: Do not exceed maximum door weight or width when choosing proper quantity of hinges.
