Satin Brass Pinnacle and Prima Series Glass-to-Glass Bracket

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

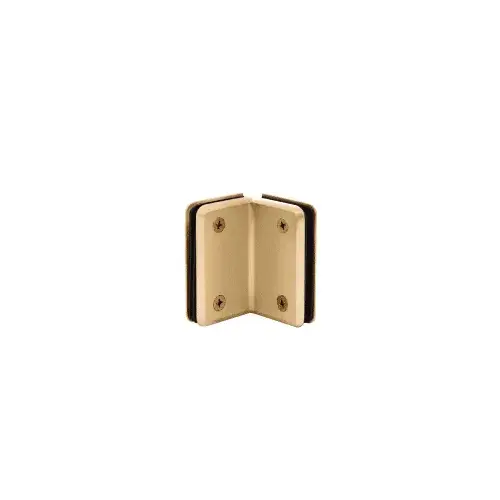

CRL P1090SB Satin Brass Pinnacle and Prima Series Glass-to-Glass Bracket

Item #: P1090SB by CR Laurence

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Use Monolithic Tempered Glass
  • For 5/16" to 1/2" (8 to 12 mm) Glass
  • Matches Configuration of Our Pinnacle, Prima, Senior Prima, Cologne, and Estate Hinges
  • Solid Brass

Height

3-1/2 in (89 mm)

Width Each Leg

2-1/16 in (54 mm)

Glass Thickness Range

5/16" to 1/2" (8 to 12 mm)

Hole Diameter Required

3/4" (19 mm)

Finish

Satin Brass

Product Overview
CRL Pinnacle and Prima Series 90 Degree Glass-to-Glass Clamps have beveled edges and are designed to secure 5/16" to 1/2" (8 to 12 mm) glass panels together. Can also be used a horizontal shelf clamp. Continuity of design is maintained by matching the look of the hinges used. They are available in several decorator finishes and are constructed of solid brass. Custom finishes are available on request by contacting DK Hardware Sales Shower Door Department.
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets and Mounting Screws Hole Diameter
Required: Two 3/4"(19 mm) Holes Per Panel
