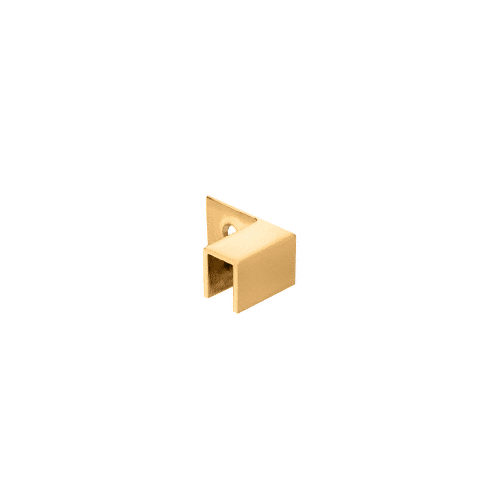

CRL S0GC37RSB Satin Brass Right Hand "Sleeve Over" Wall Mount Glass Clamp

Item #: S0GC37RSB by CR Laurence

1 reviews

$18.07 /each

SAVE UP TO 1.81

Buying in bulk

CRL S0GC37RSB Satin Brass Right Hand "Sleeve Over" Wall Mount Glass Clamp

Item #: S0GC37RSB by CR Laurence

1 1 reviews

$18.07 /each

SAVE UP TO 1.81

Buying in bulk

Special Order*

Usually ships in 1-2 weeks

QTY
+
+ Add to Wishlist

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure your are satified with our products.

  • Use Monolithic Tempered Glass
  • Secured to Glass with Set Screws
  • Assists with Shear Forces
  • For 5/16" to 1/2" (8 to 12 mm) Thick Glass
  • Holds Glass Panels in Position While Sealant Cures
  • Right-Handed as Viewed from Outside Shower
  • Solid Brass

Height

1 in (25 mm)

Minimum Order

1 Each

Mounting Plate Width

2 in (51 mm)

Width

1-3/8 in (35 mm)

Finish

Satin Brass

Type

Right Hand

CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets
No Glass Fabrication Required
NOTE: Clamps tighten using nylon tipped Allen screws. These Clamps are not designed to take the place of
Headers or a Support Bar. Contact CRL Frameless
Shower Technical Sales for more details. Important Notes: These Clamps are not designed to take the place of Headers or a Support Bar.
