Satin Brass Square 135 Degree Glass-to-Glass Clamp

Roll over image to zoom in

CRL SGC135SB Satin Brass Square 135 Degree Glass-to-Glass Clamp

Item #: SGC135SB by CR Laurence

See reviewsSee reviews
In Stock

$46.58

/each
SAVE UP TO 4.66

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features

Color

Satin Brass

Height

2 in (51 mm)

Leg Width

2-1/2 in (64 mm)

Shipping Weight

8 oz (227g)

Each Leg Size

2-1/2" (64 mm) Wide x 2" (51 mm) High

Finish

Satin Brass

Mounting Type

Glass To Glass

Material

Brass

Glazing Thickness

3/8 in. To 1/2 in. (10 mm To 12 mm)

Finish/Color

Satin Brass

Glass To Glass Angle (Degrees)

135

Enclosure Type

Tailor Made Solutions

Design Style

Squared

Product Overview

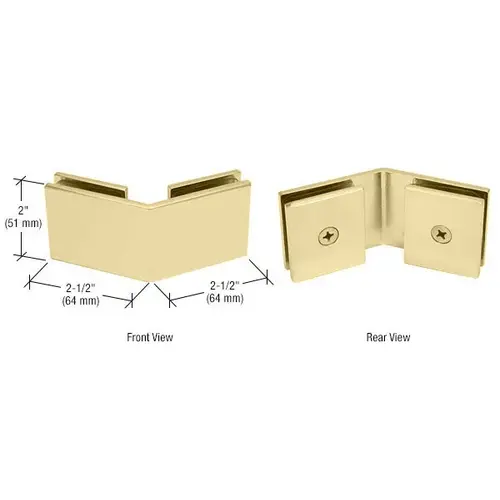

CRL Square 135 Degree Glass-to-Glass Clamps have sharp corners. The glass can be mitered or flat edged. They are designed to join two panels at 135 degrees. These Clamps have many uses, and are typically utilized in the fabrication of custom showcase displays, trophy cases, partitions, and 'all-glass' enclosures. Available in a variety of popular finishes and styles to match designer hardware. Made of solid brass, these Clamps are engineered to remain beautiful for years with proper care and cleaning. Drawings and templates are available.


NOTE: Replacement Gasket is Cat. No. SGCU1G.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 Require 3/4" (19 mm) Holes; SGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Mounting Screws (for Wall Clamps) and Gaskets

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brass Finish Advisory: Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
