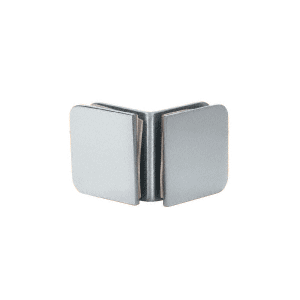

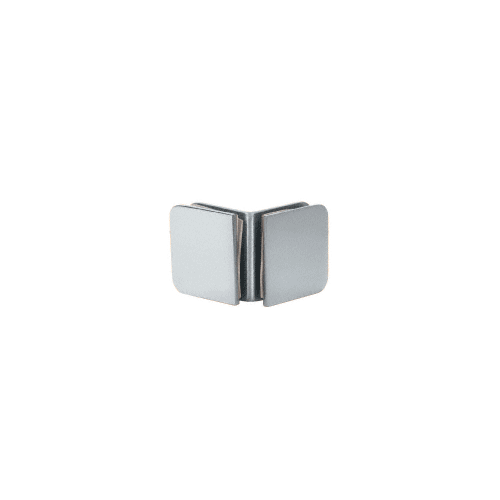

CRL GCB690SC Satin Chrome 90 Degree Junior Traditional Style Glass Clamp for 1/4" Glass
Item #: GCB690SC by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Use Monolithic Tempered Glass
- A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
- For 1/4" (6 mm) Thick Glass
- Glass Fabrication Required to Accommodate Clamps
- Solid Brass
- Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
Height
1-3/4" (44 mm)
Width (each plate)
1-3/4 in (44 mm)
Width
1-3/4" (44 mm)
Glass Thickness
1/4" (6 mm)
Size
1-3/4" (44 mm) Wide x 1-3/4" (44 mm) High (Each Plate)
Finish
Satin Chrome
Type
90 Degree
Mounting Type
Glass To Glass
Material
Brass
Glazing Thickness
1/4
Finish/Color
Satin Chrome
Glass To Glass Angle (Degrees)
90
Mounting Style
Glass To Glass
CRL Junior Traditional Style 90 Degree Glass-to-Glass Clamps are a truly versatile clamp that has two uses: As a 90 degree clamp for vertical fixed panels in glass shower enclosures; as a bracket for horizontal glass shelves within the enclosure. Clamp design allows for flush mounting of shelf to wall, or adjoining panels to meet with minimal gap.
SPECIFICATIONS:
Glass Thickness: 1/4" (6 mm)
Material: Solid Brass
Includes: Gaskets and Wood Screw for Wall Mount Application
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm) Each Panel
