Satin Chrome Adjustable "Sleeve Over" Glass Clamp

Roll over image to zoom in

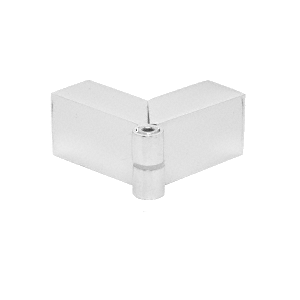

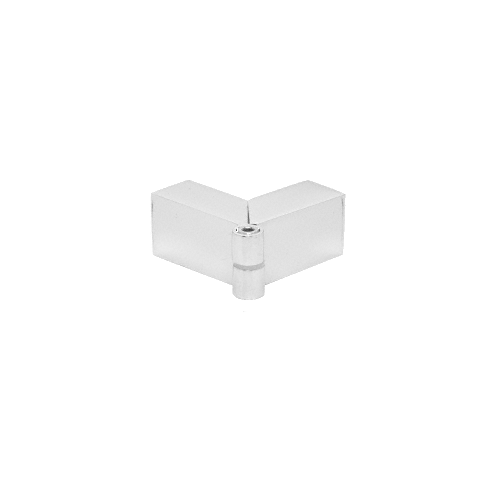

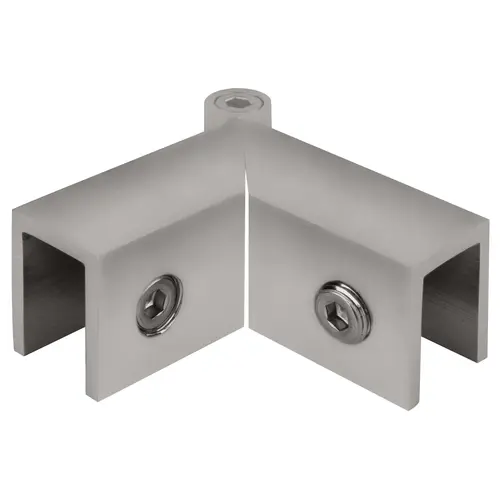

CRL S0GC91SC Satin Chrome Adjustable "Sleeve Over" Glass Clamp

Item #: S0GC91SC by CR Laurence

1 1 reviews

In Stock $46.29 /each

SAVE UP TO 4.63

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Use Monolithic Tempered Glass
  • Adjustable From 90 to 180 Degrees
  • Assists with Shear Forces
  • For 5/16" to 1/2" (8 to 12 mm) Thick Glass
  • Holds Glass Panels in Position While Sealant Cures
  • Solid Brass

Height

1" (25.4 mm)

Width Per Leg

2-1/8" (54 mm)

Finish

Satin Chrome

Mounting Type

Glass To Glass

Glazing Thickness

5/16 To 1/2

Material

Brass

Adjustable

Yes

Finish/Color

Satin Chrome

Mounting Style

Glass To Glass


CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.
SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
No Glass Fabrication Required (Clamps tighten using nylon tipped Allen screws).
Includes: Gaskets
NOTE: These Clamps are not designed to take the place of Headers or a Support Bar. Contact CRL Frameless Shower Technical Sales Department for more details. Can be used on both square cut or mitered panels.
Product Warning:
These Clamps are not designed to take the place of Headers or a Support Bar.

.
