Satin Chrome Bullet Resistant Protective Barrier System 90 Degree Bottom Mount Outside Clamp

Roll over image to zoom in

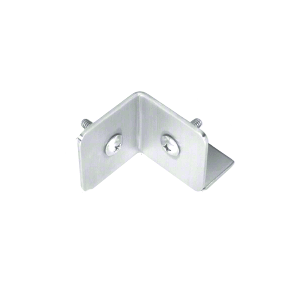

CRL PB003SC Satin Chrome Bullet Resistant Protective Barrier System 90 Degree Bottom Mount Outside Clamp

Item #: PB003SC by CR Laurence

Item Discontinued!
See reviews See reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Create Your Own Complete Barrier System with CRL Components
  • Made to Secure Bullet Resistant 1-1/4" (32 mm) Acrylic or Polycarbonate Barrier Systems in High-Security Applications
  • Made of High Quality Stainless Steel to Provide Reliable Security

Height

2" (51 mm)

Shipping Weight

1 lb (454g)

Width

2" (51 mm)

Finish

Satin Chrome

Type

90 Degree Bottom Mount Outside

Panel To Panel Angle (Degrees)

90

Glazing Thickness

1-1/4

Material

Stainless Steel

Finish/Color

Satin Chrome


CRL Protective Barrier Clamps are made to secure bullet resistant barrier systems in high-security applications. All clamps are made of high quality stainless steel to provide reliable security, are available in a variety of finishes, and provide an attractive design to your installation. Custom Clamps are available on special order for 3/4" (19 mm) thick glazing material.

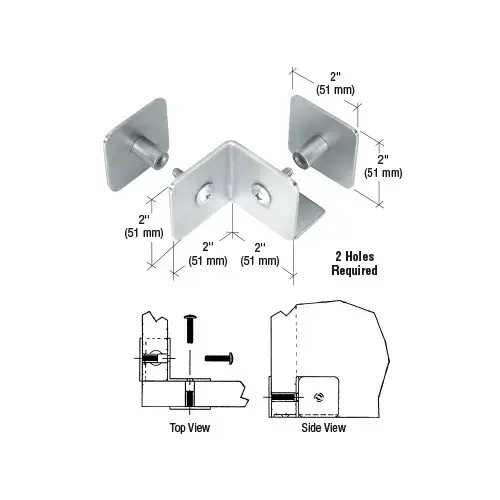

This CRL 90 Degree Bottom Mount Outside Clamp is made to secure bullet resistant acrylic or polycarbonate to the counter surface. Two screws secure the glazing material, and one screw secures the clamp to the counter surface. If glazing material will sit flush on the counter, a notch for the base mounting plate is required. If glazing material is not notched for the base mounting plate an 1/8" (3 mm) gap will be created.
SPECIFICATIONS:
Material: 11 Gauge Stainless Steel
Finishes: Brushed Stainless, Polished Stainless, Satin Chrome
Glazing: Use with 1-1/4" (32 mm) Acrylic or 1-1/4" (32 mm) Polycarbonate
Includes: Mounting Screws, Instructions
Glass Fabrication: 3/4" (19 mm) hole required.

.
