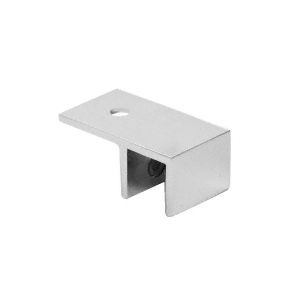

CRL S0GC01SC Satin Chrome Ceiling Mount "Sleeve Over" Glass Clamp
Item #: S0GC01SC by CR Laurence
1 1
reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Use Monolithic Tempered Glass
- Assists with Shear Forces
- For 5/16" to 1/2" (8 to 12 mm) Thick Glass
- Holds Glass Panels in Position While Sealant Cures
- Mounts to Ceiling
- Solid Brass
Width
1" (25 mm)
Height
3/4" (19 mm)
Finish
Satin Chrome
CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.
SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
No Glass Fabrication Required (Clamps Tighten Using Nylon Tipped Allen Screws)
Includes: Gaskets
NOTE: These Clamps are not designed to take the place of Headers or a Support Bar. Contact CRL Frameless Shower Technical Sales Department for more details. Can be used on both square cut or mitered panels. Important Notes: These Clamps are not designed to take the place of Headers or a Support Bar.
SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
No Glass Fabrication Required (Clamps Tighten Using Nylon Tipped Allen Screws)
Includes: Gaskets
NOTE: These Clamps are not designed to take the place of Headers or a Support Bar. Contact CRL Frameless Shower Technical Sales Department for more details. Can be used on both square cut or mitered panels. Important Notes: These Clamps are not designed to take the place of Headers or a Support Bar.
