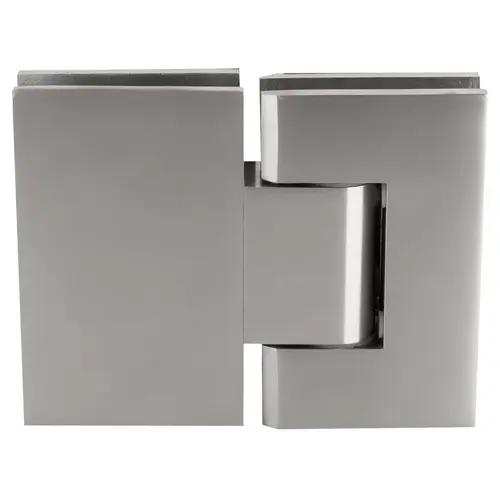

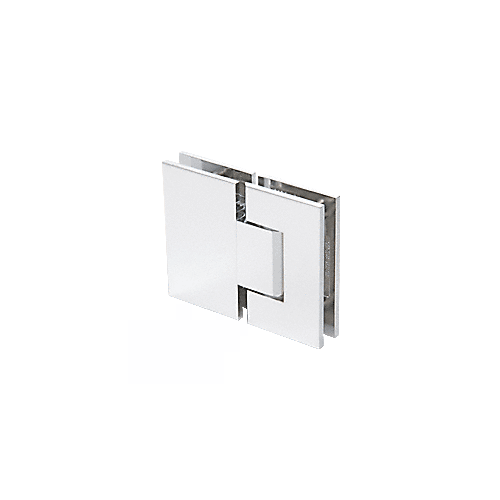

CRL GEN380SC Satin Chrome Geneva 380 Series Adjustable 180 Degree Glass-to-Glass Hinge

Item #: GEN380SC by CR Laurence

See reviews

In Stock $143.69 /each

SAVE UP TO 14.37

Buying in bulk

Roll over image to zoom in

CRL GEN380SC Satin Chrome Geneva 380 Series Adjustable 180 Degree Glass-to-Glass Hinge

Item #: GEN380SC by CR Laurence

See reviews See reviews

In Stock $143.69 /each

SAVE UP TO 14.37

Buying in bulk

QUICK SHIPPING*

Usually ships in 1 business day

QTY
+
+ Add to Wishlist

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Use Monolithic Tempered Glass
  • Adjustable 180 Degree Glass-to-Glass
  • Adjustable to Any Angle Up to 90 Degrees without Removing Door
  • Available in Several Beautiful Finishes
  • Three Year Warranty

Minimum Order

1 Each

Shipping Weight

2 Lb (907g)

Height

3-1/2" (89 mm)

Width

2-3/16" (56 mm)

Finish

Satin Chrome

The CRL Adjustable Geneva Series has taken our popular Geneva Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degree) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closing position. The door can swing 90 degree inward and 90 degree outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only(using a clear door jamb), you can adjust the hinge to close 5 degree inside the shower area, thus having the door close snugly against the jamb.
Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Features: Adjustable to any angle up to 90 degree without having to take door down.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out (at factory set position).
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
