The CRL Surface Mount Cabinet Pivot Hinge can be used with 1/4" or 5/16" (6 or 8 mm) glass. The maximum recommended door width is 24" (610 mm). The recommended maximum weight of the door should not exceed 50 lbs. (22.7 kg). Minimum clearance required is 1/4" (6 mm) top and 1/4" (6 mm) bottom. Required glass fabrication for hinge installation is one hole and one cut out. One set top and bottom per pack.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

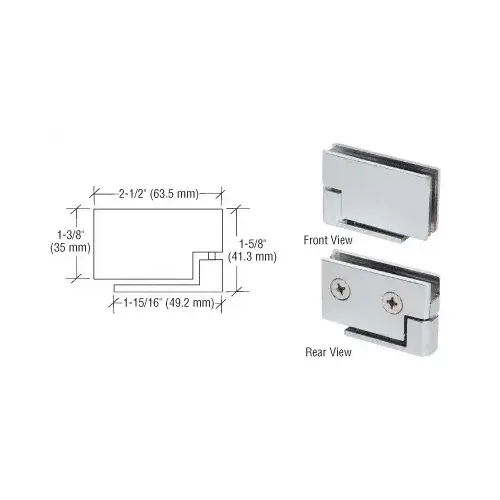

CRL FA50SC Satin Chrome Surface Mount Cabinet Pivot Hinges - pack of 2
Item #: FA50SC by CR Laurence
Brand: CRL
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- For 1/4" to 5/16" (6 to 8 mm) Glass
- One Set Top and Bottom Per Package
- Requires One Hole and One Cut-Out
Height
1-5/8
Width
2-1/2
Finish
Satin Chrome
Weight Capacity
50
Material
Brass
Glazing Thickness
1/4 To 5/16
Maximum Door Width
24
Finish/Color
Satin Chrome
Product Overview
The CRL Surface Mount Cabinet Pivot Hinge can be used with 1/4" or 5/16" (6 or 8 mm) glass. The maximum recommended door width is 24" (610 mm). The recommended maximum weight of the door should not exceed 50 lbs. (22.7 kg). Minimum clearance required is 1/4" (6 mm) top and 1/4" (6 mm) bottom. Required glass fabrication for hinge installation is one hole and one cut out. One set top and bottom per pack.
