CRL Satin Chrome Z-Series Large Round Clamp for 1/4" Glass

CRL Satin Chrome Z-Series Large Round Clamp for 1/4" Glass

  • An Excellent Choice for Partitions, Mezzanines, Wind Breaks, Railings and Much More
  • For 1/4" (6 mm) Glass
  • May Be Used on Wood or Metal Radius or Flat Surfaces
  • Use Monolithic Tempered Glass
  • Custom Painted Finishes Available Upon Request
See Full Product Description
SALE

$9.93 /each

Qty

In stockShips same day*

SALE

Qty

In stockShips same day*

SALE
Have a Question?

Chat with our Expert


Similar Products


Description

  • An Excellent Choice for Partitions, Mezzanines, Wind Breaks, Railings and Much More
  • For 1/4" (6 mm) Glass
  • May Be Used on Wood or Metal Radius or Flat Surfaces
  • Use Monolithic Tempered Glass
  • Custom Painted Finishes Available Upon Request

  • Product Description
  • Technical Details 11
  • Product Reviews
  • Product Q&A 1
  • Large Order Quote
  • Shipping / Return Policy

Product Description

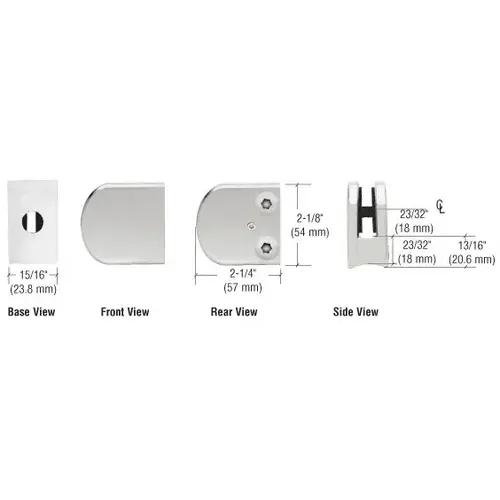

Color

Satin Chrome

Height

2-1/8" (54 mm)

Minimum Order

1 Each

Shipping Weight

1 lb (454g)

Width

2-1/4" (57 mm)

Glass Thickness

1/4" (6 mm)

  • An Excellent Choice for Partitions, Mezzanines, Wind Breaks, Railings and Much More
  • For 1/4" (6 mm) Glass
  • May Be Used on Wood or Metal Radius or Flat Surfaces
  • Use Monolithic Tempered Glass
  • Custom Painted Finishes Available Upon Request
CRL Z-Series Clamps are available in your choice of round or square shapes, and come in either economical zinc, or durable stainless steel construction. Z-Series glass clamps are available in sizes to accommodate glass thicknesses from 1/4" to 1/2" (6 to 12 mm).

The radius base design can be applied on 2" (6 mm) tubing. By drilling a notch in the glass, the pin included with each clamp can be used to eliminate glass slippage. Popular applications are partitions, mezzanines, wind breaks, railings and other commercial uses. CRL Cat. No. ZB0LT14 (Bolt) and Cat. No. RN1420 (Rivet-Nut) are used for securing z-clamp to tubing. Appropriate gaskets are included with each clamp. GLASS FABRICATION: 1/2" (12 mm) notch is required if using provided steel pin.Important NotesFor interior and exterior applications CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.
