Our CRL Push-Pad Surface Vertical Rod Panic Exit Device is intended for use with 1-3/4" thick wood or metal doors. Minimum required door stile width is 4-1/4" (108 mm). Panic base can be field sized to fit doors as narrow as 30" (762 mm). Panic is field reversible and features an easy-to-use 3/16" allen type dogging system. Active Lever Trim is available.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

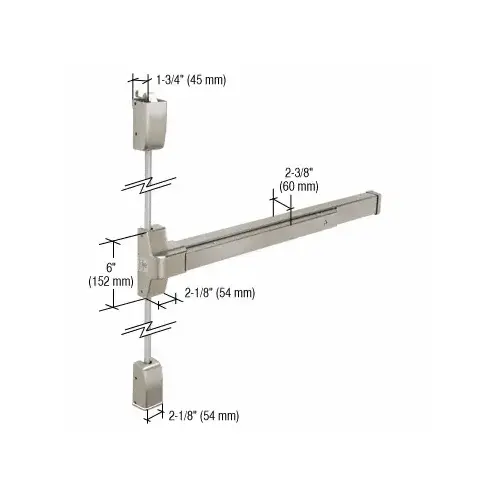

CRL DL750SV37SS Satin Stainless DL750SV Surface Vertical Rod Panic Exit Device
Item #: DL750SV37SS by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Door Heights Up to 84" (2134 mm)
- For 30" to 36" Wide Doors
- Non-Handed
- UL Listed
Handing
Non Handed
Type
Surface Vertical Rod
Finish
Satin Stainless
Material
Aluminum
Model
DL750SV
Door Thickness
1-3/4
Door Width
30 To 36
UL Listed
Yes
Includes
Mounting Hardware
Minimum Stile Width
4-1/4
Finish/Color
Stainless Steel
Recommended Door Type
Aluminum, Wood, Hollow Metal
Similar
31127548628
Panic Type
Surface Vertical Rods
Panic Dogging
Standard Hex Key Dogging
Panic Bar Base Height
2
Product Overview
Our CRL Push-Pad Surface Vertical Rod Panic Exit Device is intended for use with 1-3/4" thick wood or metal doors. Minimum required door stile width is 4-1/4" (108 mm). Panic base can be field sized to fit doors as narrow as 30" (762 mm). Panic is field reversible and features an easy-to-use 3/16" allen type dogging system. Active Lever Trim is available.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
