CRL Standard Size Self-Closing Service Windows ship fully assembled, ready to glaze or factory glazed and ready to install. They are designed for heavy-duty commercial use such as drive-thru or walk-up service and are also ideal for interior applications needing enhanced security and performance.
The Self-closing function is powered by a hydraulic mechanism concealed in the header.
Standard size models are available in Satin Anodized or Duranodic Bronze finish. Different models are available with two types of bottom condition: half-track (no track under sliding panel for clear passage across counter by others) or stainless steel step-sill, with water-dam for exterior applications.
CRL also quotes custom versions of these high-quality, popular windows.
CRL standard size self-closing models that ship unglazed come with two sets of glazing vinyl: one for 1/4" glass, and one for 1/2" glass (the larger vinyl will also accept 9/16" glazing).
For 5/8" glazing vinyl (5/8" is maximum glass thickness for glazing a DW window with vinyl), CRL product # WV3865 can be ordered separately. It is sold by the foot, minimum order 100 feet.
For 3/8" glass, the provided 1/2" vinyl can be used if the edges of the glass are wrapped with CRL product # 982116X34GRY double-sided adhesive foam tape, with the backing left on the outer edge that enters the glazing vinyl channel. It is sold separately in 200-foot rolls.
Glass sizes for CRL standard size self-closing models with 47-1/2" W x 35-3/4" H frame size and an aluminum half-track, are 20-1/4" W x 31-15/16" H (two pieces same size).
Product Warning:
Unglazed self-closing models may require adjustment of closing speed after glazing.
Heavy Duty Service Windows; not designed to be primary building seal for severe weather conditions.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

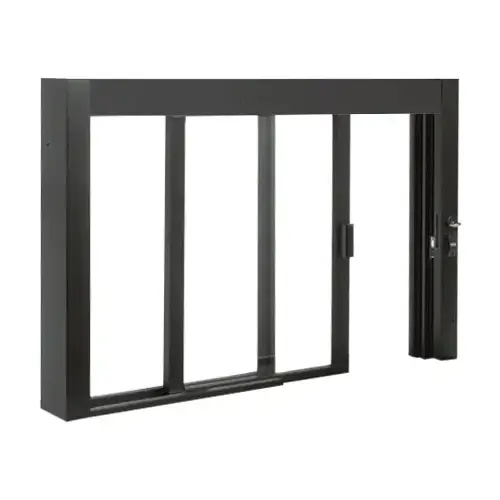

CRL SCDW48360XUDU Standard Size Self-Closing Deluxe Service Window Unglazed with Half-Track Black Bronze Anodized
Item #: SCDW48360XUDU by CR Laurence
See reviewsSee reviews
HURRY! Low in stock
$2,506.72
/eachSAVE UP TO 250.67
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Ships Assembled and Unglazed, Vinyl for 1/4" or 1/2" Glass
- OX Clerkside (X=sliding panel)
- Sturdy Thumb Turn with Hook Bolt, and Self-Latching Handle
- Popular 47-1/2" W x 35-3/4" H Frame Size fits 48" x 36" Opening
- No Track Under Sliding Panel, Manual Open/Self-Closing
Finish
Black Bronze Anodized
Frame Height
35-3/4"
Frame Width
47-1/2"
Frame Depth
4-1/2, 4-1/2
Clerkside
OX
Height
36
Glazed
No
Security Feature
Latching Handle,Thumbturn Hook Throw Deadlock With Indicator
Deal Tray Included
No
Sill Height (Inches)
9/16
Finish/Color
Black Bronze Anodized
Latch Type
Self Latching
Screen
No
Glazing Thickness
1/4, 1/2
Sill Condition
Aluminum Half Bottom Track
Width
48
Material
Aluminum
Sill Height
9/16 in. (14.3 mm)
Product Overview
CRL Standard Size Self-Closing Service Windows ship fully assembled, ready to glaze or factory glazed and ready to install. They are designed for heavy-duty commercial use such as drive-thru or walk-up service and are also ideal for interior applications needing enhanced security and performance.
The Self-closing function is powered by a hydraulic mechanism concealed in the header.
Standard size models are available in Satin Anodized or Duranodic Bronze finish. Different models are available with two types of bottom condition: half-track (no track under sliding panel for clear passage across counter by others) or stainless steel step-sill, with water-dam for exterior applications.
CRL also quotes custom versions of these high-quality, popular windows.
CRL standard size self-closing models that ship unglazed come with two sets of glazing vinyl: one for 1/4" glass, and one for 1/2" glass (the larger vinyl will also accept 9/16" glazing).
For 5/8" glazing vinyl (5/8" is maximum glass thickness for glazing a DW window with vinyl), CRL product # WV3865 can be ordered separately. It is sold by the foot, minimum order 100 feet.
For 3/8" glass, the provided 1/2" vinyl can be used if the edges of the glass are wrapped with CRL product # 982116X34GRY double-sided adhesive foam tape, with the backing left on the outer edge that enters the glazing vinyl channel. It is sold separately in 200-foot rolls.
Glass sizes for CRL standard size self-closing models with 47-1/2" W x 35-3/4" H frame size and an aluminum half-track, are 20-1/4" W x 31-15/16" H (two pieces same size).
Product Warning:
Unglazed self-closing models may require adjustment of closing speed after glazing.
Heavy Duty Service Windows; not designed to be primary building seal for severe weather conditions.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
