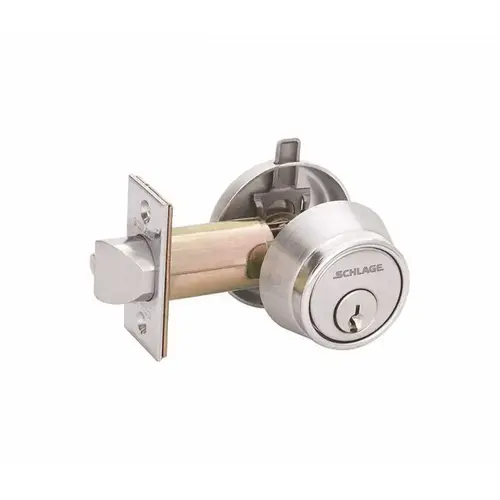

B250PD Single Cylinder Deadbolt Satin Chrome

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Schlage Commercial B250PD KDC 626 12-103 10-100 B250PD Single Cylinder Deadbolt Satin Chrome

Item #: B250PD KDC 626 12-103 10-100 by Schlage Commercial

UPC #: 043156918850

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$315.70

/each
SAVE UP TO 31.57
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 4 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Finish

Satin Chrome

Backset

2-3/4 Inch

Warranty

3 Year Limited

Manufacturer Warranty

3-Year Limited Warranty

Certifications and Listings

ANSI Certified

Commercial/Residential

Commercial

Door Handing

Universal/Reversible

Door Locks & Knobs Product Type

Latches

General Material

Metal

Hardware Finish Family

Chrome

Included

Hardware, Installation Instructions

Interior/Exterior

Interior/Exterior

Product Depth (in.)

1

Product Height (in.)

2.5

Product Width (in.)

2.5

Security/ANSI Grade

ANSI Grade 2 (Better)

Tamper Resistant

YES

Pack Size

1

UNSPSC

46171500

Strike Size

1-1/8" x 2-3/4"

Interior Lock Type

Thumbturn

Exterior Lock Type

Keyed

Manufacturer Parent

Allegion

Finish Description

Satin Chrome

Latch Throw

9/16 Inch

Function

50-Single Cylinder Deadlatch (Night Latch)

Latch Type

Square Corner

ANSI Function

E0122

Grade

ANSI/BHMA Grade 2

Sub-Series

B250PD-626-12-103-10-001

ADA Compliant

No

Keyblank Grouping

SCHL-C-6-1

Front Size

1-1/8" x 2-1/4"

Latch Bolt Material

Brass

Cylinder Type

Conventional

Strike

T-Strike, 1-1/8 Inch x 2-3/4 Inch, 1-1/4 Inch Lip, Sq Corner

Keying Charges

CCAM

Function Family

Single Cylinder Deadbolt

Standards

A156.36-2010

Cylinder Material

Solid Brass

Product Type

Auxiliary Lock

Rose/Escutcheon Trim

Round Rose

Features

Tough Nickel Silver Keys for Smooth, Long-Lasting Operation; Exclusive Concealed Wood Frame Reinforcer; Cylinder Collar Reinforced With Security Inserts; Thumbturn “Holdback" Feature Retains the Deadlatch in a Retracted Position When Desired

Color Code

626/US26D

Strike Type

T-Strike, Square Corner

Keyway

Schlage C

Series

B250 Series

Cylinder Type Used

Conventional

Latch Housing Size

1 Inch

Strike Lip

1-1/4 Inch

Finish Family

Satin Chrome

Product Overview
B250 SeriesGrade 2 Deadlatch

The B250 operates as a deadlatch for situations where the non-handled function of a deadbolt is desired but in a self-locking form. This makes it ideal for pool gates as a double cylinder and similar applications where relocking is essential to security. When used on solid doors as a single cylinder with thumbturn, the holdback function allows the latch to remain retracted so the lock can be used as a nightlatch.

Specifications: Handing:
  • B250 Series deadlatches are reversible.
Door thickness:
  • 5-pin: 1 3/8" to 1 3/4" (35 mm to 44 mm) standard
Backset:
  • 2 3/8" (60 mm) standard
Front:
  • Brass, bronze or stainless steel. 1 1/8" x 2 1/4"
    (29 mm x 57 mm) square corner, beveled
Dead bolt:
  • 1" (25 mm) throw with saw-resistant hardened steel insert
Latch bolt:
  • Brass, 9/16" (14 mm) throw, deadlocking on keyed and exterior functions
Exposed trim:
  • Wrought or forged brass or bronze, or pressure cast zinc
Thumbturn:
  • Pressure cast zinc, plated to match finish symbols
Strike:
  • 1 1/8" x 2 3/4" (32 mm x 70 mm) with steel reinforcer and two 3" screws standard
Cylinder and keys:
  • 6-pin solid brass patented Everest 29 S123 keyway standard with two nickel silver keys per lock. Everest SL cylinders available in 7 pin Everest B and Everest 29 R keyway families only. Items specified in C keyway will be furnished 5-pin.
Keying options:
  • Interchangeable core and Primus XP high security cylinders. Master keying, grand master keying and construction keying.
Warranty:
  • Commercial: Three-year limited
Finishes:
  • 605 - Bright brass
  • 606 - Satin brass
  • 609 - Antique brass
  • 612 - Satin bronze
  • 613 - Oil rubbed bronze
  • 622 - Matte black
  • 625 - Bright chrome plated
  • 626 - Satin chrom plated
  • 626AM - Anti-microbial coating
Certifications: ANSI:
  • B250 Series meet or exceed A156.36-2010 Grade 2 strength and operational requirements.
UL437 Listed locking cylinder optional:
  • Specify Primus 20-500 Series cylinder B250 Series Grade 2 products.
ADA compliant:
  • Schlage Lock Company offers a wide selection of locks designed to meet the Americans with Disabilities Act.
