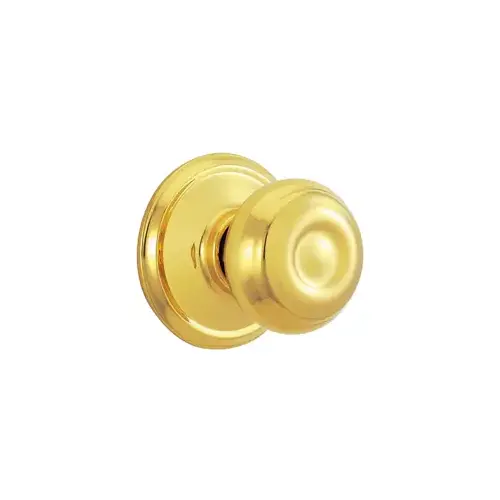

Schlage Residential F10GEO605 F10GEO605 16-080 10-027 Georgian Passage - Polished Brass
Item #: F10GEO605 by SCHLAGE LOCK COMPANY LLC
Brand: Schlage Residential
UPC #: 043156956913
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Non-Locking - Ideal for Closets and Rooms Where Locking is Not Needed
- Non-locking, ideal for closets and rooms where locking is not needed
- Easy 3-Step Installation, Only a Screwdriver Needed
- Quality Materials and Construction for Exceptional Security
- Applications: Residential single- and multi-family doors
- Quality Finishes Coordinate with Plumbing and Lighting
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Graded excellent in residential security, durability and finish
- Lifetime Mechanical & Finish Warranty
- U.L. Listed: Locks for up to three-hour fire doors available
- Hall/ Closet (Passage) Function - - Both Knobs/Levers Always Unlocked
- Certified Commercial Grade 2
- Graded Best in Residential Security, Durability, and Finish
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
Strike
Full Lip 2-1/4 Inch, Radius Corner
Backset
2-3/8 Inch or 2-3/4 Inch
Color Code
605/US3
Grade
ANSI/BHMA Grade 2
Finish Description
Bright Polished Brass
Rose/Escutcheon Trim
Round Rose
Handing
Reversible
Box Height
3.0600
Box Width
4.3700
Box Length
8.1400
Product Material
Zinc
Door Cross Bore
2.125 Inch
Included Components
Passage levers, roses, latch, strike, mounting hardware
Bore Size
2.1250
Knob Diameter
2.1250
Door Thickness
1-3/8 to 1-3/4"
Projection
2.3125
Design
Georgian Knob
Series
F Series
Function
Passage/Hall/Closet
Finish
Polished Brass
Security Grade
2
Returnable
Yes
Defective Code
A
Commercial or Residential
Commercial and Residential
Drill Resistant
No
Indoor or Outdoor
Indoor
Maximum Door Thickness
1-3/4"
Style
Georgian
Packaging Type
Boxed
Faceplate Material
Brass
Minimum Door Thickness
1-3/8"
Trim Rings
No
Product Type
Cylindrical Lock
Knob style
GEO-Georgian
Material
Metal
Each Weight
1.310 LB
Velocity
X
Hazardous Material
No
Alternative UPC
043156988167
Strike Size
1-5/8 x 2-1/4"
Cross Bore Diameter
2-1/8"
Key Type
Not Keyed
Type
Hall and Closet Lock
Application
Residential Single and Multi-Family Doors
Nomenclature
F10GEO605 GEO PASS BRT BRASS
Strike Type
Full Lip Radius Corner
Warranty
Limited lifetime
Backset Size
2-3/8 x 2-3/4"
For Door Thickness
1-3/8" to 1-3/4"
Strike Number
10-027
Manufacturer Parent
Allegion
Faceplate Dimension
1" x 2-1/4"
Door Edge Bore
1 Inch
Knob Style Family
Round Flat Knob
Latch Type
Spring
Function Description
Latch retracted by knobs/levers at all times
ANSI Function
F75
Sub-Series
F10-GEO
Door Preparation
Cross Bore 2-1/8"; Edge Bore 7/8"
ADA Compliant
No
Product Height
2-3/4 Inch
Box Dimensions (L x W x H)
3.06x4.37x8.14"
Function Family
Passage/Hall/Closet
Standards
ANSI/BHMA A156.39-2015; UL Listed
Product Projection
2-5/16 Inch
Features
Non-Locking Ideal For Closets And Rooms Where Locking Is Not Needed; Easy 3-Step Installation, Only A Screwdriver Needed; Quality Materials And Construction For Exceptional Security; Quality Finishes Coordinate With Plumbing And Lighting
Bolt Throw
1/2 Inch
Strike Name
Round Corner Full Lip
Finish Family
Polished Brass
Length
17.25"
Collection
Georgian
Package Height
3.06"
Package Length
8.14"
Package Width
4.37"
Item Weight
1.55 lbs
Pack Size
1
MADE IN THE USA
No
Package Quantity
1
UL Listed
Yes
Door Handing
Universal
AbilityOne
No
UNSPSC
46171503
Keying
Non-Keyed
Lockset Function
Passage
GSA Approved
No
Keyway
None
TAA/BAA Compliant
Yes
ANSI/BHMA Standards
F75
Keyed
No
Handle Type
Knob
Handle Design
Georgian Knob
Electronic
No
Standard Strike
10-027: Full Lip Radius Strike, 2-1/4" x 1-5/8"
Substrate Type
Zinc and Steel
Door Thickness Range
1-3/8" To 1-3/4"
Lock Type
Cylindrical
Standard Latch
16-080: Spring Latch, Dual Option (Round, Drive-in)
Rose Design
Alden Rose
Dimension
2-3/16" Knob and 2-5/16" Projection with 2-3/4" Rose
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Rose/Escutcheon Design
Georgian Rose
Door Range
1-3/8" to 1-3/4"
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
605
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
Georgian Knob
No of inners
1
Commercial/Residential
Residential
Assembled Product Depth
1.84 in.
Assembled Product Height
2.75 in.
Assembled Product Width
2.75 in.
Product Overview
The Schlage Georgian Knob Hall and Closet Lock in Bright Brass is perfect for use on doors where locking is not needed. The modest Georgian knob features symmetrical detailing throughout, and looks especially classic when finished in Bright Brass. Plus, it's been designed and tested with strength and durability in mind.
