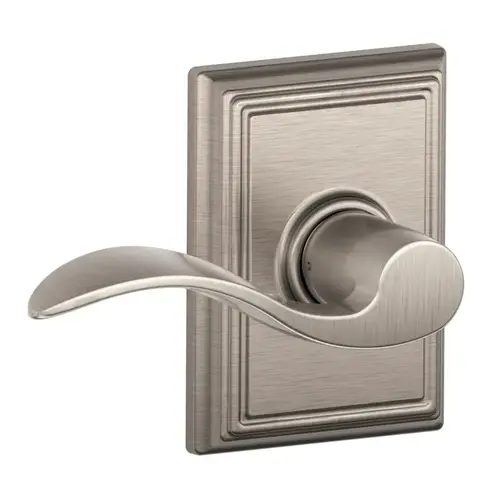

Schlage Residential F10VACC619ADD Entry Lever Satin Nickel 1.75" Satin Nickel
Item #: F10VACC619ADD by MIDWEST WHOLESALE HARDWARE
UPC #: 043156526505
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Grade
ANSI/BHMA Grade 2
Function
10-Hall/Closet
Door Thickness
1-3/8" to 1-3/4"
Strike
Full Lip 2-1/4 Inch, Radius Corner
Finish Description
Satin Nickel
Latch Type
Spring
Included Components
Passage levers, roses, latch, strike, mounting hardware
Lever Style
ACC-Accent
Rose/Escutcheon Trim
ADD-Addison
Door Cross Bore
2.125 Inch
Product Material
Zinc
Finish
Satin Nickel
Security Grade
ANSI/BHMA Grade 2
Returnable
Yes
Defective Code
C
Commercial or Residential
Commercial and Residential
Indoor or Outdoor
Indoor and Outdoor
Maximum Door Thickness
1.75"
Packaging Type
Bagged
Faceplate Material
Nickel
Minimum Door Thickness
1.375"
Trim Rings
Yes
Product Type
Cylindrical Lock
Door Direction
Left or Right Handed
Material
Nickel
Each Weight
2.550 LB
Hazardous Material
No
Application
Residential Single and Multi-Family Doors
Backset
2-3/8 Inch or 2-3/4 Inch
Warranty
Limited Lifetime Mechanical and Finish Warranty
Color Code
619/US15
Bolt Throw
1/2 Inch
ANSI Function
F75
Strike Number
10-027
Strike Type
Radius, Full Lip
ADA Compliant
YES
Finish Family
Satin Nickel
Strike Size
1-5/8 x 2-1/4 Inch
Strike Name
Round Corner Full Lip
Standards
ANSI/BHMA A156.39-2015; UL Listed; ADA
Faceplate Dimension
1" x 2-1/4"
Door Preparation
Cross Bore 2-1/8"; Edge Bore 7/8"
Function Description
Latch retracted by knobs/levers at all times
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Passage/Hall/Closet
Features
Non-Locking Ideal For Closets And Rooms Where Locking Is Not Needed; Easy 3-Step Installation, Only A Screwdriver Needed; Quality Materials And Construction For Exceptional Security; Quality Finishes Coordinate With Plumbing And Lighting
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Lever Style Family
Wave Lever
Sub-Series
F10-V-ACC-ADD
The Schlage F-Series levers offer the benefit of over 90 years of Schlage quality design and workmanship. With a range of levers in a variety of finishes, Schlage has a lockset to complement any architectural style. These value-engineered locksets are built to last.
Available Functions: F10/F75 – Hall & Closet*:- Both knobs/levers always unlocked
- Push-button locking
- Can be opened from outside with small circular tool
- Turning inside knob/lever releases button
- Non-turning trim for one side of door
- Used for door pull or as matching inactive trim
- Keyed entry function unlocks when door is opened from the inside, allowing you to leave quickly, conveniently and re-enter easily
- Locked by inserting key and rotating cylinder from outside, or manually rotating interior turn-button after exit
- Outside knob/lever fixed. Entrance by key only .
- Inside knob/lever always unlocked
- *Non-keyed Locks
- **Keyed Locks
- Dual Option (Round, Drive-in) Standard
- Square Corner
- Triple Option
- (Round, Square, Drive-in)
- UL Listed Square Corner with Firecup
- UL Listed Round Corner with Firecup
- 5" Backset, Square Corner
- Dual Option (Round, Drive-in) Standard
- Square Corner
- Triple Option
- (Round, Square, Drive-in)
- UL Listed Square Cornerwith Firecup
- UL Listed Round Corner with Firecup
- 5" Backset, Square Corner
- Round Corner Full Lip Standard
- Square Corner T Strike
- Square Corner Full Lip
- Circular - Adjustable
- Dual Strikes
- (Round & Square Full Lip)
- ANSI Square Corner
- ANSI/BHMA A156 .2-2017 Commercial Grade 2
- ANSI/BHMA A156 .39-2015 Residential Grade AAA
- Available UL Listed for 3-hour fire door
- 1" x 2 1/4", 1/4" radius corner faceplate, 7/8" housingdiameter, 1/2" throw,circular drive-in included, universal latch
- 1 5/8" x 2 1/4" radius corner, full lip, no box
- Dual backset latches, fits either 2 3/8" or 2 3/4" backsets
- 5-Pin, C keyway, keyed alike (KA4)
- 1 3/8" - 1 3/4"
- Two per lock, 5-pin, C section
- Locks are furnished with standard features unless otherwise specified. Toorder locks with non-standard features specify non-standard feature desired.
- Lifetime Bright Brass
- Bright Brass (US3)
- Satin Brass
- Antique Brass (US5)
- Oil-Rubbed Bronze (US10B)
- Polished Nickel
- Satin Nickel (US15)
- Antique Pewter (US15A)
- Distressed Nickel
- Matte Black (US19)
- Bright Chrome (US26)
- Satin Chrome (US26D)
- Aged Bronze
- Non-standard finishes are not available.
- (ACC)
- (AVA)
- (VLA)
- (BIR)
- (BRW)
- (CHP)
- (ELA)
- (FLA)
- (JAZ)
- (LAT)
- (MNH)
- (MER)
- (NBK)
- (SAC)
