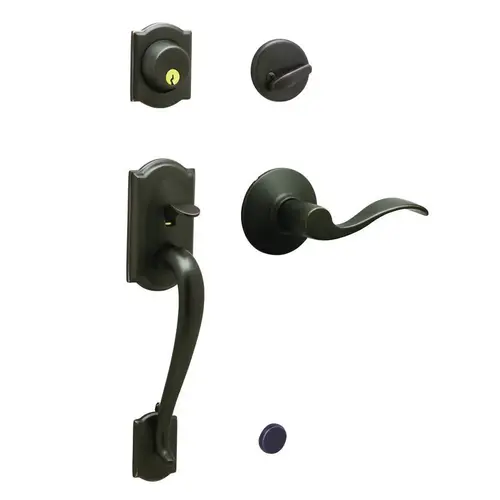

Schlage Residential F60VCAMXACC716 F60 Camelot Handleset/Entrance Accent Lever Complete Lock in Vis Pack Aged Bronze
Item #: F60VCAMXACC716 by Ingersoll-Rand Company
UPC #: 194555135307
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Handle, lever and deadbolt
- One tool installation, installs with just a Phillips screwdriver
- Patented through bolt slides up and down so you don't have to patch or redrill your door
- Graded excellent in residential security, durability and finish
- Inside trim, levers are zinc-plated to match finishes indicated
- F Series keying handlesets are 5-pin tumbler with two keys per lock
- Outside trim, handlesets are solid forged brass, wrought brass trim rings with concealed security inserts
- The cylinder trim rings are reinforced by a tapered die-cast security insert installed under the trim ring for resistance to wrenching or prying the cylinder unit
Function
60-Handleset Exterior/Interior
Handle Style
CAM-Camelot
Finish Description
Aged Bronze
Lever Style
ACC-Accent
Rose/Escutcheon Trim
Arch Escutcheon
Series
F Series
Finish
Aged Bronze
Security Grade
1
Returnable
Yes
Defective Code
A
Commercial or Residential
Residential
Drill Resistant
No
Maximum Door Thickness
1-3/4"
Style
Camelot, Accent
Packaging Type
Clamshell
Faceplate Material
Bronze
Minimum Door Thickness
1-3/8"
Trim Rings
No
Product Type
Handleset
Knob style
Handle and Lever
Material
Solid Brass
Each Weight
7.600 LB
Velocity
D
Hazardous Material
No
Alternative UPC
043156890040
Dimensions
7/8"
Application
Residential
Center to Center
4"
Warranty
Lifetime Limited Mechanical/Finish
Door Thickness
1-5/8 to 1-3/4"
Cylinder Type
5-Pin
Strike Type
Full Lip Square Corner
Commercial/Residential
Commercial/Residential
Door Handing
Right
Backset Size
2-3/8 x 2-3/4"
Key Type
Keyed different
Keyway type
C
Number of Cylinders
1
Interior Handle Type
Lever
Latch Housing Diameter
1"
Nomenclature
F60VCAM/ACC716 HANDLESET A BRZ
Backset Type
Universal
Edge Bore Diameter
7/8"
Deadbolt Latch Throw
1"
Plainbolt Latch Throw
1/2"
Grade
ANSI/BHMA Grade 1
Backset
2-3/8 Inch or 2-3/4 Inch
Color Code
643E/US11/716
Keyway
Schlage C
ADA Compliant
No
Finish Family
Antique Bronze
Included Components
(2) Cut Keys
Door Cross Bore
2.125 Inch
Product Material
Zinc
Standards
ANSI/BHMA A156.36-2016; ANSI/BHMA A156.40-2015
Function Family
Handleset Complete Exterior/Interior
Features
Door Frame Reinforcer With 3" Screws; Adjustable Throughbolt can Move Up and Down 1-1/2" to Fit a Variety of Pre-Existing Holes; Deadbolt Thrown or Retracted by Key From Outside or by Inside Thumbturn
Manufacturer Parent
Allegion
Lever Style Family
Wave Lever
Sub-Series
F60-V-CAM-ACC
Overall Height
18.06"
Handle Type
Handleset with Lever
Grip Center to Center
8-3/8 to 9-7/8"
Faceplate Size
1 x 2-1/4"
Latch Type
Deadbolt Latch and Spring Latch
Strike Size
1.13 x 2.75"
Bolt Type
Mechanical
Cross Bore Diameter
2-1/8"
Bolt Throw Size
1"
Re-Key Technology
Traditional
Projection Size
1/2 1"
Interior Locking
Yes
Design
Wave
Lock Type
Mechanical
Collection
Camelot
Package Height
7"
Package Length
22"
Package Width
8.5"
Item Weight
8.5 lbs
Product Overview
F60VCAM/ACC716 HANDLESET A BRZ
Specifications:
Specifications:
Application: For residential single and multi-family doors
Warranty: Limited Lifetime
For residential single and multi-family entrance doors. Deadbolt thrown or retracted by key from outside or by inside turn unit. Latch retracted by thumbpiece from inside or outside grip. Solid forged brass outside trim, wrought brass trim rings with concealed security inserts. Wrought brass inside trim. Wrought brass cylinder trim rings reinforced by tapered die-cast security insert for resistance to wrenching or prying. Ultima Lifetime Anti-Tarnish finish on all exterior parts. Door preparation of 1-1/2 in or 2-1/8 in deadbolt and 2-1/8 in latch bolt crossbore, 7/8 in or 1 in edge bore, 1 in x 2-1/4 in latch faces, 4 in CTC. Door thickness of 1-5/8 to 1-3/4 in, packed with extra mounting screws to accommodate 2 in doors. Cylinder 5-pin with nickel silver pins and keys. Faceplate 1 in x 2-1/4 in. Deadbolt 1-1/8 in x 2-3/4 in, square corner, no lip, dust box and door frame reinforcer; Latch bolt - 1-5/8 in x 2-1/4 in full lip. Bolt Maximum Security B300 single cylinder deadbolt with 7/8 in housing diameter, 1 in throw. ANSI/BHMA Grade 1 Security features. Both handleset and deadbolt fit all doors, 2-3/8 in or 2-3/4 in backset; square corner, round corner or drive in preps.
