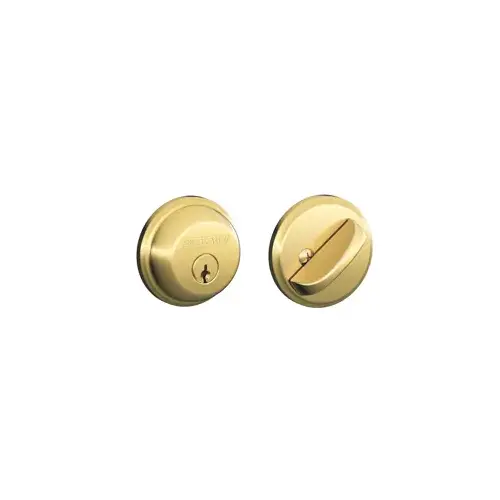

Schlage B60NV505 KA4 B60NV505KA4 Deadbolt, Light Brass, 2-3/8 x 2-3/4 in Backset, C Keyway
Item #: B60NV505 KA4 by SCHLAGE LOCK
UPC #: 194555135420
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Strike Size
1-1/8 x 2-3/4"
Finish
Light Brass
Keyway type
C
Faceplate Size
1 x 2-1/4"
Cross Bore Diameter
1-1/2 x 2-1/8"
Cylinder Type
5-Pin
Dimensions
7/8"
Nomenclature
B60NV505 SC DBOLT K4 LT BRASS
Number of Cylinders
1
Throw Length
1"
Strike Type
Round Corner Square Corner
Backset Size
2-3/8 x 2-3/4"
Height
8.50
Length
3.50
Width
4.50
Country Origin Code
CN
Hazardous Material
No
ECCN
EAR99
Material
Metal
Door Thickness
1-3/8 to 1-3/4"
Latch Type
Deadbolt Latch
Commercial/Residential
Residential
Key Type
SC1
Security Grade
Grade 1
Latch Housing Diameter
7/8"
Backset Type
Adjustable
Re-Key Technology
Traditional
Projection Size
1"
Interior Locking
Yes
Specifications:
Application: For residential single and multi-family doors
Includes: (2) Keys
Suitable for: 1-3/8 to 1-3/4 in Thick Doors
For residential single and multi-family entrance doors. Deadbolt thrown or retracted by key outside or by turn unit inside; bolt automatically deadlocks when fully thrown. 7/8 in wrought brass trim ring reinforced with security inserts. Concealed spin ring rotates to protect against wrenching the cylinder. Solid steel door frame reinforcer with 3 in screws protects against kick in attack. Solid, 1-Piece design protects against hammer and crowbar prying attacks. 2-1/2 in steel adapter ring, plated to match, provided for accommodating 2-1/8 in crossbore. Hands-free installation. Door prep 1-1/2 in or 2-1/8 in crossbore, 7/8 in edge bore, 1 in x 2-1/4 in latch face. Door thickness 1-3/8 to 1-3/4 in. Cylinder solid brass, 5-pin, tumbler C keyway with nickel silver, pick-resistant, spool pins and 2 nickel silver, 5-pin, C section keys. Faceplate 1 in x 2-1/4 in. Strikes of 1-1/8 in x 2-3/4 in, no lip, with dust box and door frame reinforcer. Bolt 7/8 in housing and 1 in throw with concealed hardened steel roller to prevent cutting or sawing. ANSI/BHMA Exceeds A 156.5, 1992 Grade 2 with Grade 1 security features. Fits all doors, 2-3/4 in or 2-3/8 in backset; square corner, round corner or drive in preps.
