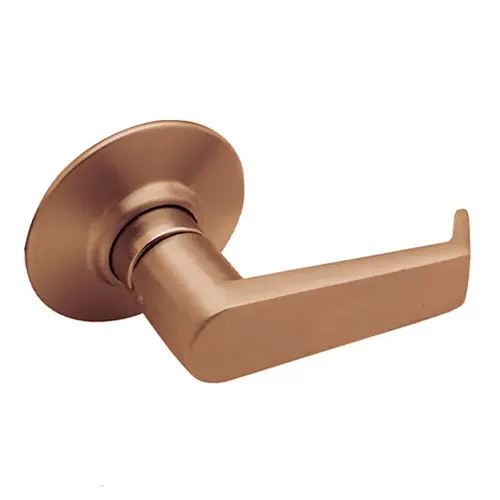

Schlage Commercial A170-LEV-612Click To Copy A170 Levon Single Dummy Trim, Satin Bronze

A SeriesCylindrical locks

The A Series cylindrical lock is Schlage's first lock and continues to exceed ANSI/BHMA Grade 2 standards, allowing it to be used in a wide range of commercial and residential applications. A Series locks are available in ten finishes and five trim designs allowing it to fit any new or existing environments.

Specifications: Handing:

• Keyed functions are reversible. Non-keyed functions are not handed

Door thickness:

• 1 3/8" to 1 7/8" (35 mm to 48 mm) standar

Backset:

• 2 3/8" (60 mm) standard. 2 3/4" (70 mm)

Front:

• Steel. 1 1/8" x 2 1/4" square corner, beveled, for 2 3/4" backset standard. Optional 1" square corner, 1" radius corner, and non-UL drive-in/round face

Lock chassis:

• Steel, zinc dichromate plated for corrosion resistance

Latch bolt:

• Brass, chrome plated, 1/2" throw, deadlocking on keyed and exterior functions

Exposed trim:

• Wrought brass, bronze or stainless steel. Levers are pressure cast zinc, plated to match finish symbols

Strike:

• T-strike 1 1/8" x 2 3/4" (29 mm x 70 mm) x 1 1/8" (29 mm) lip to center with box standard

Cylinder and keys:

• Commercial: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock
• Residential: 6-pin C keyway, keyed 5-pin

Keying options:

• Interchangeable core and Primus XP high security cylinders. Master keying, grand master keying, and construction keying

Warranty:

• Commercial: three-year limited

Finishes: Georgian:

• 605 - Bright brass
• 606 - Satin brass
• 609 - Antique brass
• 625 - Bright chromium plated
• 626 - Satin chromium plated
• 643e - Aged bronze
• e = an equivalent finish to the BHMA standard.

Orbit:

• 605 - Bright brass
• 606 - Satin brass
• 609 - Antique brass
• 612 - Satin bronze
• 613 - Oil rubbed bronze
• 625 - Bright chromium plated
• 626 - Satin chromium plated
• 643e - Aged bronze
• e = an equivalent finish to the BHMA standard.

Plymouth:

• 605 - Bright brass
• 606 - Satin brass
• 609 - Antique brass
• 612 - Satin bronze
• 613 - Oil rubbed bronze
• 625 - Bright chromium plated
• 626 - Satin chromium plated
• 629 - Bright stainless steel
• 630 - Satin stainless steel
• 643e - Aged bronze
• e = an equivalent finish to the BHMA standard.

Tulip:

• 605 - Bright brass
• 606 - Satin brass
• 609 - Antique brass
• 625 - Bright chromium plated
• 626 - Satin chromium plated
• 643e - Aged bronze
• e = an equivalent finish to the BHMA standard.

Levon:

• 605 - Bright brass
• 612 - Satin bronze
• 613 - Oil rubbed bronze
• 626 - Satin chromium plated
• 643e - Aged bronze
• e = an equivalent finish to the BHMA standard.

Certifications: ANSI:

• Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.

Federal:

• Meets FF-H-106C.

California state reference code:
(Formerly Title 19, California State Fire Marshal Standard)

• All levers with a return to door of 1/2" (64mm) or less comply.

UL/cUL:

• All locks listed for A label single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing.

ADA compliant:

• Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.
