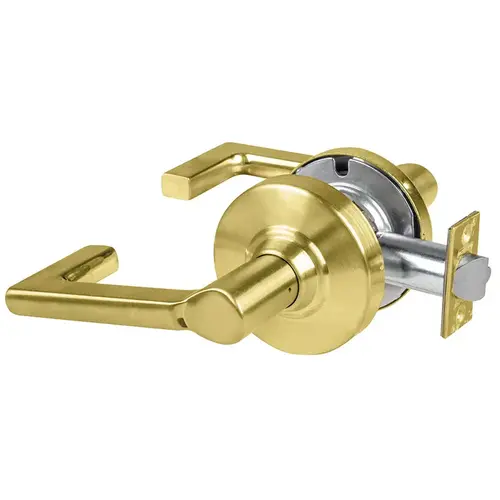

Schlage Commercial ALX10LON606 ALX Series Grade 2 Passage Longitude Lever Lock with 47267038 Springlatch and 47267101 ANSI Strike Satin Brass Finish
Item #: ALX10LON606 by Schlage Commercial
Brand: Schlage Commercial
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Passage - Both Levers Always Unlocked
- Accommodates 1 3⁄8" to 1 3⁄4" door thickness with minimal chassis adjustment
- ƒƒCaptured screws in latch, strike and inside spring cage eliminate small, loose parts
- ANSI/BHMA Certified A156.2
- 1-3/8" to 1-3/4" Door Range
- UL Listed for 3 Hour Fire Door
- Commercial Grade 2
Finish
Satin Brass
Backset
2-3/4" Backset
Function
Passage
Strike
ANSI Strike
Design
Longitude Lever
Series
ALX Series
Color
Satin Brass
Color Code
606/US4
Fire Rated
3 Hours {A}
Origin
Mexico
Handing
Reversible
Package Volume
372.28125
Package Height
4.75
Package Width
8.25
Package Length
9.5
Grade
Grade 2
ANSI/BHMA Standards
F75
Keyed
No
Handle Type
Lever
Collection
ALX_Series
Electronic
No
Door Handing
Field Reversible
Lever Type
LON - Longitude
Standard Strike
1-1/4" x 4-7/8", ANSI, No Box
Substrate Type
Zinc and Steel
Lock Type
Cylindrical
Duty Level
Medium Duty
Segment
Door Hardware
Standard Latch
1-1/8" x 2-1/4 , Square Corner
Product Overview
ALX Series Grade 2 Passage Longitude Lever Lock with 47267038 Springlatch and 47267101 ANSI Strike Satin Brass Finish
