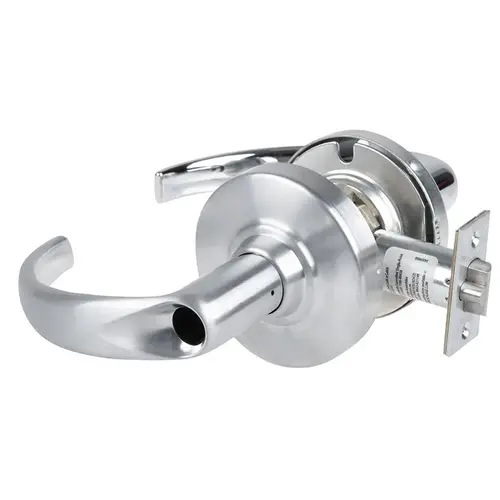

Schlage Commercial ALX53LSPA626AM ALX Series Grade 2 Entry Sparta Lever Lock Less Cylinder with 47267042 Deadlatch and 47267101 ANSI Strike Antimicrobial Satin Chrome Finish
Item #: ALX53LSPA626AM by Schlage Commercial
Brand: Schlage Commercial
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Entry - Turn/Push Button Locks Outside Lever Until Unlocked with Key or Rotating Inside Turn
- Accommodates 1 3⁄8" to 1 3⁄4" door thickness with minimal chassis adjustment
- ƒƒCaptured screws in latch, strike and inside spring cage eliminate small, loose parts
- ANSI/BHMA Certified A156.2
- 1-3/8" to 1-3/4" Door Range
- UL Listed for 3 Hour Fire Door
- Commercial Grade 2
Finish
Antimicrobial Satin Chrome
Backset
2-3/4" Backset
Function
Entry
Strike
ANSI Strike
Design
Sparta Lever
Series
ALX Series
Color
Satin Chrome Antimicrobial
Color Code
626AM/US26DAM
Fire Rated
3 Hours {A}
Origin
Mexico
Package Height
4.75
Package Length
9.5
Package Volume
372.28125
Package Width
8.25
Grade
ANSI/BHMA Grade 2
Warranty
10 year limited
Handle Type
Lever
Door Thickness
1-3/8" to 1-3/4"
Rose Diameter
3-7/16 Inch
Cylinder Type
L-Less Conventional Cylinder
Latch Throw
1/2 Inch
Finish Description
Satin Chrome-Antimicrobial
ANSI Function
F109
Latch Number
47267042
Latch Type
Deadlatch
Strike Number
47267101
Strike Type
ANSI Strike
ADA Compliant
YES
Finish Family
Satin Chrome
Lever Style
SPA-Sparta
Strike Size
1-1/4" x 4-7/8"
Rose/Escutcheon Trim
Round Rose
Product Material
Zinc and steel, zinc dichromate plated for corrosion resistance
Strike Name
ANSI 1-1/4 x 4-7/8
Standards
ANSI/BHMA Certified A156.2-2011 Series 4000, Grade 2; ICC A117.1; ASTM E1886 and E1996 Impact and Cycle/Miami-Dade Equivalent TAS 201 and TAS 202; ASTM E330 Static Load/Miami-Dade Equivalent TAS 202; Meets FF-H-106C Series 161; California State Code
Cylinder Type Used
Conventional
Function Description
Pushing and turning button on inside locks outside knob/lever requiring use of a key until button is manually unlocked.
Front Size
1-1/8" x 2-1/4"
Function Family
Entry/Entrance
Strike Lip
1-3/16 Inch
Product Projection
3-1/2 Inch
Trim Material
Pressure Cast Zinc (Lever)
Features
Extreme Installation Simplicity; Exceptional Durability
Product Type
Cylindrical Lock
Manufacturer Parent
Allegion
Latch Corner
Square
Latchbolt Size
7/8 Inch
Knob/Lever Size
4-15/16 Inch
Latch Bolt Material
Stainless Steel
Lever Style Family
Curved Return Lever
Sub-Series
SchlageCom-ALX53L-SPA
Substrate Type
Zinc and Steel
Door Handing
Non-Handed
Segment
Door Hardware
Duty Level
Heavy Duty
Collection
ALX_Series
Keyed
Yes
Lock Type
Cylindrical
Keying
None (Select for Less Cylinder Options)
ANSI/BHMA Standards
F109
Latch
Default - 47267042: DeadLatch, 2-3/4" Backset, 1-1/8" x 2-1/4" Square corner
Handle Design
Sparta Lever
Standard Strike
47267101: ANSI, No Box, 1-1/4" x 4-7/8" (1-3/16" Lip Length)
Cylinder
L - Less Conventional Cylinder
Electronic
No
Keys Included
2
Standard Latch
47267042: Dead Latch - 2-3/4" Backset - Square Corner, 1-1/8" x 2-1/4", Non-Restoring Function
Product Overview
ALX Series Grade 2 Entry Sparta Lever Lock Less Cylinder with 47267042 Deadlatch and 47267101 ANSI Strike Antimicrobial Satin Chrome Finish
