Schlage Commercial ALXCK643E ALX Series Grade 2 Capable Chassis Kit with Rhodes Rose and 47267101 ANSI Strike Aged Bronze Finish
Item #: ALXCK643E by Schlage Commercial
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Handing
Reversible
Strike
ANSI Strike
Series
ALX Series
Grade
Grade 2
Alternate Part Number-1
174614
Finish code
643E
Color
Aged Bronze
Fire Rated
3 Hours {A}
Color Code
643E/US11E
Origin
Mexico
Function
CK-Chassis Kit
Finish Description
Aged Bronze
ADA Compliant
YES
Finish Family
Antique Bronze
Included Components
Includes chassis, inside spring cage, Rhodes roses and ANSI strike.
Rose/Escutcheon Trim
Rhodes Rose
Standards
Grade 2, UL 10C listed for 3-hour fire door
Product Type
Lock Part/Accessory
Manufacturer Parent
Allegion
Sub-Series
SchlageCom-ALX-CK
Finish
Aged Bronze
Dimension
3-7/16" Rose
Material
Steel, Zinc Dichromated
Door Thickness
1-3/8" to 1-3/4"
Manufacturer Warranty
Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Rose/Escutcheon Design
Rhodes Rose
UL Listing Type
UL Listed for 3 Hour Fire Door
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
4-7/8" with 1-1/4" Lip
Cross Bore Size
2-1/8" Bore with Two 5/16" Post Holes
No of inners
1
Product Overview

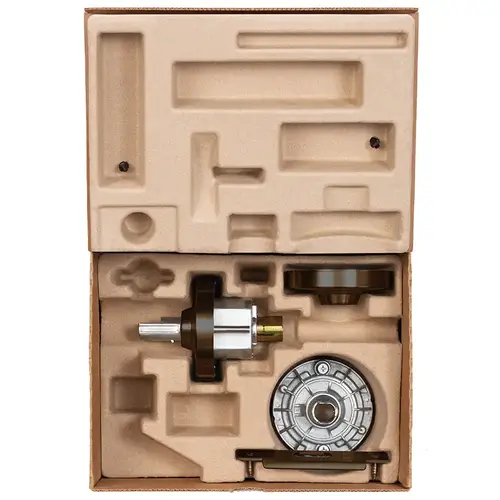

Chassis Kit, Includes Chassis, Inside Spring Cage, Rhodes Rose, ANSI Strike, Aged Bronze Finish
The Schlage ALX Series gives you the ability to use it as you would any other lock: ordered and delivered as a complete, configured product ready for installation. However, in its new modular design, ALX Series offers you the flexibility to utilize the separate components of chassis, function and lever packaged kits to create a lock to meet your needs on demand. Whether you are needing configured locks or change lock functionality, ALX Series can work for you. The ALX Series locksets are commonly used in Government, Office, Retail, and other commercial applications. The ALX Series has been certified Grade 2; exceeding 400,000 operating cycles without failure.
ALX gains X Factor qualities born from modular design making it a grade 2 lock unlike any other.
The Schlage ALX Series offers an unprecedented level of flexibility to every aspect of how you use it in your business. Based on a modular design and built on a single chassis, ALX also provides an advantage to all your grade 2 lock customers.
