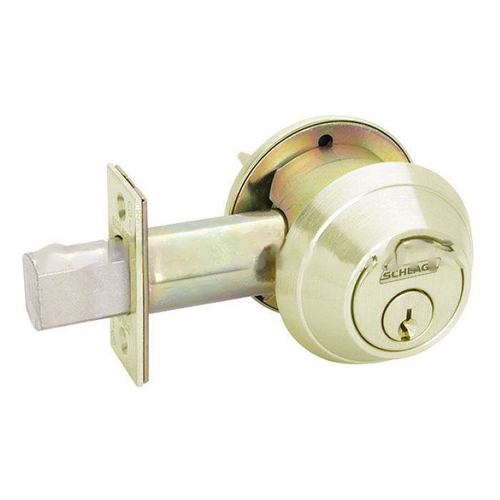

Schlage Commercial B660P-606-12-630-10-094 B660P Single Cylinder Deadbolt, Satin Stainless Steel

B600 Series Grade 1 Deadbolts

The B600 Series are Schlage's highest grade deadbolt locks. Choose the 600 for Grade 1 security in high-traffic commercial applications. A variety of functions and finishes makes the B600 Series a versatile choice for added security no matter where you use it.

The toughest deadbolts in the business

Key features:

• 1" (25 mm) throw, high-strength steel alloy deadbolt with hardened steel roller resists sawing and kick-in attacks

• Precision-built solid brass 6-pin cylinders with phosphor bronze springs and nickel silver pins ensure long life and smooth operation

• Tough nickel silver keys for smooth, long-lasting operation

• Exclusive concealed wood frame reinforcer protects wood jamb against kick-in attacks

• Free-spinning solid cylinder collar resists wrenching and prying

• Large inside Americans with Disabilities Act (ADA) compliant thumbturn makes it easy to throw and retract deadbolt

• Metal shield protects bolt from ice-pick attack through the door

• Hardened steel ball-bearings protect mounting bolts from drill attack

Specifications: Handing:

• B Series locksets are non-handed

Door thickness:

• 1 3/4" to 2" (44 mm to 51 mm) standard. Available for 1 3/8" (35 mm) and doors up to 2 1/2" (63mm), assembled to order. Door ranges may vary by function.

Backset:

• 2 3/4" (70 mm) standard

Front:

• Brass, bronze or stainless steel. 1 1/8" x 2 1/4" (29 mm x 57 mm) square corner, beveled

Dead bolt:

• 1" (25 mm) throw with saw-resistant hardened steel insert

Latch bolt:

• Brass, 9/16" (14 mm) throw, deadlocking on keyed and exterior functions

Exposed trim:

• Wrought or forged brass or bronze, or pressure cast zinc

Thumbturn:

• Pressure cast zinc, plated to match finish symbols

Strike:

• 1 1/8" x 2 3/4" (32 mm x 70 mm) with steel reinforcer and two 3" screws standard

Cylinder and keys:

• 6-pin solid brass patented Everest 29 S123 keyway standard with two nickel silver keys per lock. Everest SL cylinders available in 7 pin Everest B and Everest 29 R keyway families only. Items specified in C keyway will be furnished 5-pin.

Keying options:

• Interchangeable core and Primus XP high security cylinders
• Master keying, grand master keying and construction keying

Warranty:

• Commercial: Three-year limited

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 609 - Antique brass
• 612 - Satin bronze
• 613 - Oil rubbed bronze
• 619 - Satin nickel
• 622 - Matte black
• 625 - Bright chromium plated
• 626 - Satin chromium plated
• 626AM - Anti-microbial coating
• 643e - Aged bronze
• e=an equivalent finish to the BHMA standard.

Certifications: ANSI:

• B600 Series meets or exceeds A156.36-2010 Grade 1 strength and operational requirements.

UL / cUL:

• B600 Series locks are UL10B Listed auxiliary locks for A label single doors, 4' x 8'.

ADA compliant:

• Schlage Lock Company offers a wide selection of locks designed to meet the Americans with Disabilities Act.
