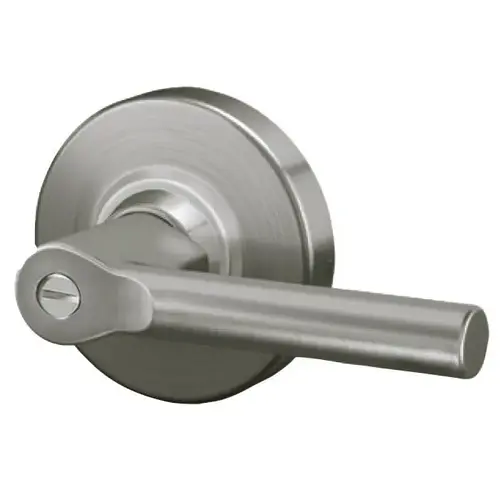

Schlage Commercial PC40BRW619 Performance Series Bath Bed Privacy Cylindrical Lock with Broadway Lever with 47272065 Latch and 47267101 Strike Satin Nickel Finish
Item #: PC40BRW619 by Schlage Commercial
Brand: Schlage Commercial
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Tested and certified to ANSI/BHMA Grade 1 operational and security standards; FSIC Interchangeable core cylinders meet Grade 2 security standards and SFIC Interchangeable core cylinders meet Grade 3 security standards. Optional 2-3/8" backset latches meet BHMA Grade 2
- Available in 8 functions; four keyed, two non-keyed, two dummy functions
- Design-forward styles including 8 levers, 1 rose, and 6 finishes that perfectly suite with ND & ALX Series
- Modular design of zinc and steel components plated for corrosion protection
- Outside cast steel spindle construction exceeds 2 million cycles (2x the BHMA standard)
Manufacturer Warranty
Limited 5 Year Warranty
Rose/Escutcheon Design
Rhodes Rose
UL Listing Type
3 Hour Fire
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-1/4" x 4-7/8"
Cross Bore Size
2-1/8" Bore
Finish code
619
Series
PC Series
Latch Faceplate Dimension
1-1/8" x 2-1/4"
Lever Knob Design
Broadway Lever
No of inners
1
Fire Rated
Yes
Strike
ASA Strike
Function
Bath Bed Privacy
Handing
Reversible
Backset
2-3/4" Backset
Material
Zinc
Dimension
4-1/2" Lever Length with 3-1/10" Projection with 3-11/25" Rose
Finish
Satin Nickel
Projection
3-1/10"
Diameter
3-11/25" Rose
Grade
ANSI/BHMA Grade 1
Warranty
5-Year Limited Mechanical Warranty
Color Code
619/US15
Door Thickness
1-3/8" to 1-3/4"
Rose Diameter
3.44 Inches
Cylinder Type
Non-Keyed
Latch Throw
1/2 Inch
Finish Description
Satin Nickel
ANSI Function
F76
Strike Type
ANSI Strike
ADA Compliant
YES
Finish Family
Satin Nickel
Lever Style
BRW-Broadway
Strike Size
1-1/4" x 4-7/8"
Rose/Escutcheon Trim
Round Rose
Door Cross Bore
2-1/8 Inches
Product Material
Zinc and steel, zinc dichromate plated for corrosion resistance
Recommended For
Commercial Real Estate, Retail, Multifamily and Hospitality
Standards
A156.2-2022, Series 4000 Grade 1 cylindrical locks, ICC A117.1 Accessible and Usable Buildings and Facilities, UL 10C and CAN/ULC-S104 listed
Function Description
Outside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever.
Front Size
1-1/8" x 2-1/4"
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Privacy/Bedroom/Bathroom
Strike Lip
1-3/16 Inch
Product Projection
3.06 Inches
Features
Suites with PM Series, PT Series, and ALX Series Grade 2 cylindrical locks
Product Type
Cylindrical Lock
Manufacturer Parent
Allegion
Lever Length-Inches
4.50 Inches
Latch Corner
Square
Latchbolt Type
Springlatch
Lever Style Family
Straight Lever
Sub-Series
SchlageCom-PC40-BRW
Product Overview
Performance Series Bath Bed Privacy Cylindrical Lock with Broadway Lever with 47272065 Latch and 47267101 Strike Satin Nickel Finish
