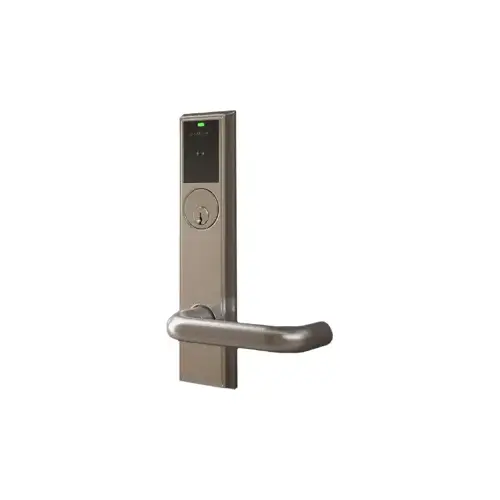

Schlage Electronics LEBMS-ADD-P-06-626-C LE Networked Wireless Mortise Lock, Multi-Tech Reader with Bluetooth Compatibility, with LED, Storeroom Function, Mortise Cylinder, Schlage 6-Pin C Keyway, Addison Escutcheon with Rhodes Lever, Satin Chrome 626

Item #: LEBMS-ADD-P-06-626-C by Schlage Electronics

See reviewsSee reviews
In Stock

$1,385.23

/each
SAVE UP TO 138.52

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Alternate Part Number-1

157177

Product Overview

Schlage LE Series Wireless Mortise Lock

The Schlage LE Series wireless mortise lock with ENGAGE™ technology is designed to affordably extend electronic access control deeper into the building beyond traditional perimeter and high security openings. The LE Series is ideal for commercial real estate, K-12, higher education, assisted living, medical offices, or multi-family applications. Facilities can benefit from the enhanced security, efficiency, and convenience of upgrading to electronic credentials.

LE Series suites with the most popular Schlage L Series decorative levers, keyways, and finishes, providing attractive options to meet the requirements of nearly any facility. LE Series is ideal for office and suite entries, conference rooms, common area doors, resident units, and sensitive storage areas with a mortise door prep.

Built-in Bluetooth enables LE Series wireless locks to connect directly to smart phones and tablets; no need for a proprietary handheld device for set-up and configuration. And with built-in Wi-Fi, LE Series locks can connect directly to an existing Wi-Fi network enabling automatic updates to lock configuration and user access. With the ENGAGE cloud-based web and mobile apps, it's easy to configure lock settings, add users, and view audits and alerts from anywhere.

FEATURES and BENEFITS

  • Designed to be easy to install, connect, manage, and use for perimeter and interior door applications
  • Suites with mechanical L Series with 28 levers and 2 knobs
  • Weather-resistant design for use on perimeter doors
  • MS mortise with indicator, MB mortise with push button, and MD mortise deadbolt available to configure applications for storeroom, privacy, apartment, and office
  • Lever handing is field changeable on most styles.
  • Innovative integrated door position switch requires no additional door prep1
  • Built-in Bluetooth enables wireless configuration from smart phones and tablets
  • Built-in Wi-Fi enables automatic daily updates sent directly from host software
  • Enables networked real-time communication with the ENGAGE Gateway and software alliances
  • Up to 2 years of battery life
  • ANSI/BHMA A156.25 (indoor/outdoor), ANSI/BHMA Grade 1, UL 294, UL10C (3-hour fire rated), FCC Part 15, ADA, RoHS ULC S319 (add with other UL certs - between UL 294 and UL10C

    • LE SERIES WIRELESS LOCK SPECIFICATIONS

  • Users: Up to 5,000 1
  • Audits: Up to 2,000 2
  • Credential verification time: = 1 second 3
  • Visual communications: Exterior LED (red, amber, green); Interior LED (red, green)
  • Audible communications: Audible indicator (field configurable)
  • Communication standards:
    • 2.4 GHz Wi-Fi (IEEE 802.11b/g/n)
    • WPA2, WPA, WEP, 802.1x
    • Bluetooth low energy (version 4.2)
    • Transport Layer Security (TLS) version 1.2
    • Advanced Encryption Standard (AES), 256-bit
  • Communication range: Up to 100 ft.
  • Wake-Up on Radio: Responds to command from host in less than 5 seconds when linked to ENGAGE Gateway (requires alliance member software)
  • Data rate: 54 Mbps via Wi-Fi
  • Connectivity options:
    • Mobile (send updates at the lock)
    • Wi-Fi access point (automatic daily updates 7)
    • No-Tour with MT20W enrollment reader and smart credentials
    • ENGAGE Gateway (real-time communication)
      • RS-485 to ACP or st
  • Battery life: Up to 2 yrs with 4 AA batteries 4
  • Operating temperature:
    • Exterior: -31° to 151°F (-35° to 66°C)
    • Interior: 32° to 120°F (0° to 49°C) (battery)
  • Operating humidity: 0 - 100% non-condensing
  • Certifications: ANSI/BHMA A156.25-2013 (Indoor/Outdoor), ANSI/BHMA A156.13-2012, Series 1000, Grade 1, UL 294, ULC S319, UL10C (3-hour fire rated), FCC Part 15, IC RSS-210, ADA, RoHS, ICC ANSI A117.1
