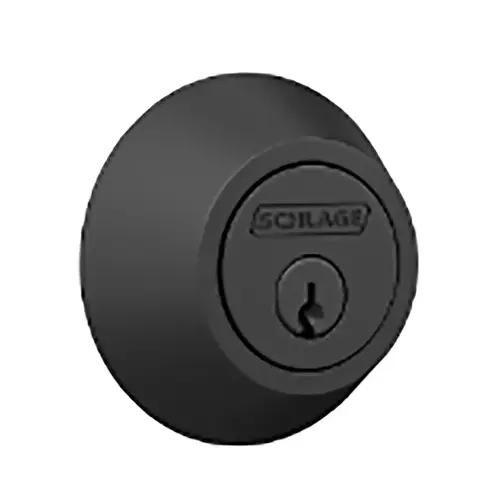

Schlage Residential JD60622 JD60 622 16-068 10-267 K4 1-Cyl Deadbolt - Matte Black
Item #: JD60622 by Dexter by Schlage
Brand: Schlage Residential
UPC #: 043156008025
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Single Cylinder Deadbolt - Unlocked by Key from Outside or by Inside Thumbturn
- Guaranteed to fit on standard pre-drilled doors
- Deadbolt thrown or retracted by key from outside or by inside turn unit
- ANSI/BHMA A156.36 Grade 3
- Bolt automatically deadlocks when fully thrown
- Reversible Handing
- Includes All Mounting Hardware for Easy Installation
- Easy installation with screwdriver
- Unique snap and stay design holds deadbolt in place while tightening screws
- Lifetime Mechanical & 5 Year Finish Warranty
- Universal latches slide easily into place and require no tools or manual adjustments
- Can be rekeyed to match existing locks or other locks purchased
Finish
Matte Black
Backset
Dual Option-Round, Drive-In
Handing
Reversible
Function
Single Cylinder
Strike
Dual Radius Deadbolt and Full Lip
Series
JD Series
Application
Residential Single- and Multi-Family Doors
Warranty
Lifetime Mechanical and 5 yr Finish
Color
Black
Door Thickness
1-3/8 to 1-3/4"
Cylinder Type
5-Pin
Commercial/Residential
Commercial Residential
Backset Size
2-3/8 2-3/4"
Key Type
Keyed
Keyway type
C
Security Grade
Grade 3
Nomenclature
JD60622 DEADBOLT SNGL CYL MBLK
Backset Type
Universal
Hazardous Inland
Hazardous transport required
Grade
ANSI/BHMA Grade 3
Style
Round
Color Code
622/US19/MTBK
Keyway
SC1 5-Pin Pin & Tumbler
Finish Description
Black
Product Height
3.15 Inches
Product Length
3.74 Inches
ADA Compliant
No
Finish Family
Black
Included Components
Deadbolt; Roses; Latch; Strike; Mounting Hardware
Keyblank Grouping
SCHR-C-5-1
Rose/Escutcheon Trim
Round Rose
Door Cross Bore
2.125 Inch
Keying Charges
Residential-Conventional
Product Material
Zinc
Standards
ANSI/BHMA A156.36-2010
Function Family
Single Cylinder Deadbolt
Features
Deadbolt Thrown or Retracted by Key From Outside or by Inside Turn Unit; Bolt Automatically Deadlocks When Fully Thrown; Dual Option Latches
Product Type
Auxiliary Lock
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
3.15x3.74x3.74
Sub-Series
RL_Deadbolts_Schlage_Residential_16
Collection
Deadbolts
Package Height
3.15"
Package Length
3.74"
Package Width
3.74"
Item Weight
1.5 lbs
Dimension
2-5/8" Diameter and 1" Projection
Material
Zinc
Manufacturer Warranty
Limited Lifetime Mechanical and 5 Year Finish Warranty
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-1/8" x 2-3/4"
Cross Bore Size
2-1/8" Bore
Finish code
622
Latch Faceplate Dimension
Round Corner 1" x 2-1/4" Faceplate or 1" Collar
No of inners
1
No Of Pins
5 Pin Cylinder
Keyed
Yes
Keying
None (Select for Less Cylinder Options)
Electronic
No
Door Handing
Non-Handed
Standard Strike
10-267: One Radius Deadbolt Full Lip Strike (10-102) & One Radius Deadbolt Strike (10-103)
Door Thickness Range
1-3/8" To 1-3/4"
Standard Latch
16-068: Triple Option (Round, Drive-in)
Product Overview
STANDARD FEATURES:
Certification:ANSI/BHMA A156.36-2010 Commercial Grade 3
Available option for UL Listed for 3 hour fire door (JD60, JD80 and JD81 functions only)
Deadbolt Latch: Dual Option: 1" x 2-1/4", 1/4" round faceplate, drive-in latch,
1" housing diameter, 1" throw
Strike:1" x 2-1/4" round corner and radius corner, full lip
Backset:Adjustable for 2-3/8" or 2-3/4"
Cylinder:5-pin, C keyway, keyed alike (KA4)
Door Range:1-3/8" 1-3/4"
Keys:Two brass cut keys per lock, 5-pin, C section
