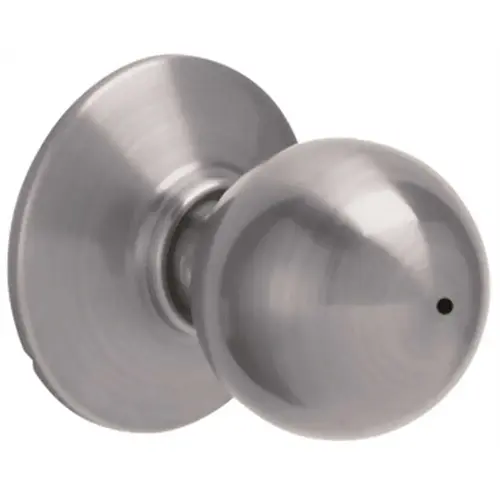

Schlage Commercial A40S ORB 626 11-116 10-001 A40S Orbit Privacy Lock Satin Chrome
Item #: A40S ORB 626 11-116 10-001 by Schlage Commercial
UPC #: 043156947195
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Satin Chrome
Style
Traditional
Warranty
3 Year Limited
Manufacturer Warranty
3-Year Limited Warranty
Application Type
Privacy
Assembled Depth (in.)
2.88
Assembled Height (in.)
2.56
Assembled Width (in.)
2.56
Backset size (in.)
2-3/4
Certifications and Listings
ANSI Certified
Commercial/Residential
Commercial
Door Locks & Knobs Product Type
Privacy Knobs
General Material
Metal
Hardware Finish Family
Chrome
Included
Hardware, Installation Instructions
Interior/Exterior
Interior
Knob Diameter (in.)
2.13
Knob style
ORB-Orbit
Security/ANSI Grade
ANSI Grade 2 (Better)
Strike width (in.)
1.13
Features
Cold-Rolled Steel, and Machined and Threaded Hubs Prevent Loosening of the Lockset by Bolting the Chassis to the Door; Heavy-Duty Cast Mounting Plate With Specially Tapped Holes, Keeps Lockset Tight on the Door
Lock Type
Unkeyed
Color Code
626/US26D
Function
40-Privacy
Handle Type
Knob
Rose Diameter
2-9/16 Inch
Strike
T-Strike, 1-1/8 Inch x 2-3/4 Inch, 1-1/4 Inch Lip, Sq Corner
Latch Throw
1/2 Inch
Finish Description
Satin Chrome
ANSI Function
F76
Latch Number
11-116
Latch Type
Spring Latch
Strike Number
10-001
Strike Type
T-Strike
ADA Compliant
No
Finish Family
Satin Chrome
Strike Size
1-1/8" x 2-3/4"
Rose/Escutcheon Trim
Round Rose
Standards
Meets or Exceeds A156.2 Series 4000, Grade 2 Strength and Operational Requirements; Meets Ff-H-106C; California State Reference Code
Front Material
Steel
Function Description
Outside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever.
Front Size
1-1/8" x 2-1/4"
Function Family
Privacy/Bedroom/Bathroom
Strike Lip
1-1/8 Inch
Product Projection
2-7/8 Inch
Product Type
Cylindrical Lock
Series
A Series
Manufacturer Parent
Allegion
Latch Corner
Square
Knob/Lever Size
2-1/8 Inch
Latch Bolt Material
Brass
Knob Style Family
Ball Knob
Sub-Series
CL_Cylindrical_Locks_schlage_commercial_137
Grade
ANSI/BHMA Grade 2
Application
Schools; Hospitals; Hotels; Commercial Buildings; Institutional Buildings; Multi-Family Properties; Homes
Backset
2-3/4 Inch
Product Overview
A SeriesCylindrical locks
(Formerly Title 19, California State Fire Marshal Standard)
The A Series cylindrical lock is Schlage's first lock and continues to exceed ANSI/BHMA Grade 2 standards, allowing it to be used in a wide range of commercial and residential applications. A Series locks are available in ten finishes and five trim designs allowing it to fit any new or existing environments.
Specifications: Handing:- Keyed functions are reversible. Non-keyed functions are not handed
- 1 3/8" to 1 7/8" (35 mm to 48 mm) standar
- 2 3/8" (60 mm) standard. 2 3/4" (70 mm)
- Steel. 1 1/8" x 2 1/4" square corner, beveled, for 2 3/4" backset standard. Optional 1" square corner, 1" radius corner, and non-UL drive-in/round face
- Steel, zinc dichromate plated for corrosion resistance
- Brass, chrome plated, 1/2" throw, deadlocking on keyed and exterior functions
- Wrought brass, bronze or stainless steel. Levers are pressure cast zinc, plated to match finish symbols
- T-strike 1 1/8" x 2 3/4" (29 mm x 70 mm) x 1 1/8" (29 mm) lip to center with box standard
- Commercial: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock
- Residential: 6-pin C keyway, keyed 5-pin
- Interchangeable core and Primus XP high security cylinders. Master keying, grand master keying, and construction keying
- Commercial: three-year limited
- 605 - Bright brass
- 606 - Satin brass
- 609 - Antique brass
- 625 - Bright chromium plated
- 626 - Satin chromium plated
- 643e - Aged bronze
- e = an equivalent finish to the BHMA standard.
- 605 - Bright brass
- 606 - Satin brass
- 609 - Antique brass
- 612 - Satin bronze
- 613 - Oil rubbed bronze
- 625 - Bright chromium plated
- 626 - Satin chromium plated
- 643e - Aged bronze
- e = an equivalent finish to the BHMA standard.
- 605 - Bright brass
- 606 - Satin brass
- 609 - Antique brass
- 612 - Satin bronze
- 613 - Oil rubbed bronze
- 625 - Bright chromium plated
- 626 - Satin chromium plated
- 629 - Bright stainless steel
- 630 - Satin stainless steel
- 643e - Aged bronze
- e = an equivalent finish to the BHMA standard.
- 605 - Bright brass
- 606 - Satin brass
- 609 - Antique brass
- 625 - Bright chromium plated
- 626 - Satin chromium plated
- 643e - Aged bronze
- e = an equivalent finish to the BHMA standard.
- 605 - Bright brass
- 612 - Satin bronze
- 613 - Oil rubbed bronze
- 626 - Satin chromium plated
- 643e - Aged bronze
- e = an equivalent finish to the BHMA standard.
- Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
- Meets FF-H-106C.
(Formerly Title 19, California State Fire Marshal Standard)
- All levers with a return to door of 1/2" (64mm) or less comply.
- All locks listed for A label single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing.
- Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.
