Sheppard Steering Box Pitman

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

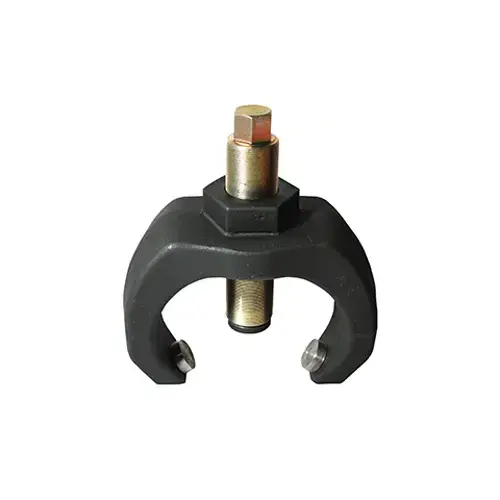

Schley Products 14900 Sheppard Steering Box Pitman

Item #: 14900 by SCHLEY PRODUCTS

Brand: Schley Products

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$411.84

412.00 /each
SAVE UP TO 41.18
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 2 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Forged from alloy steel and heat treated for strength and rigidity, this pitman arm remover features the size and power required when servicing the Sheppard steering gear.
  • The tool's threaded actuator is designed with a fine thread pitch for reduced effort during service
  • Features a unique ball bearing tip that protects the sector shaft on the Sheppard box.
  • The interchangeable actuator tips expand the functionality and range of applications, allowing this tool to be used on steering gear with either short or long sector shafts.
  • Used in 6, 7 & 8 series HD trucks.
  • Applications include: M80, M90, M100, M110, 292, 392, 492 & 592 boxes.
  • Applicable brands: Chevy / GMC, Freightliner, Kenworth, MAC, Navistar. Paccar, Peterbilt, Volvo & other HD truck manufacturers.
  • Pressure tip includes a ball bearing pivot to reduce drag & protect the sector shaft.
  • Removable shims adapt the puller to narrow or wide pitman arm designs.

Division

2720

Product Overview
A super heavy-duty pitman arm puller designed for Sheppard steering boxes equipped in large commercial trucks.Forged from alloy steel and heat treated for strength and rigidity, this pitman arm remover features the size and power required when servicing the Sheppard steering gear.The tool's threaded actuator is designed with a fine thread pitch for reduced effort during serviceFeatures a unique ball bearing tip that protects the sector shaft on the Sheppard box.The interchangeable actuator tips expand the functionality and range of applications, allowing this tool to be used on steering gear with either short or long sector shafts.Used in 6, 7 & 8 series HD trucks.Applications include: M80, M90, M100, M110, 292, 392, 492 & 592 boxes.Applicable brands: Chevy / GMC, Freightliner, Kenworth, MAC, Navistar. Paccar, Peterbilt, Volvo & other HD truck manufacturers.Pressure tip includes a ball bearing pivot to reduce drag & protect the sector shaft.Removable shims adapt the puller to narrow or wide pitman arm designs.
