These CRL SDC EMLock 1500 Series Electromagnetic Locks offer the advantage of being totally adaptable to virtually any application utilizing Top Jamb or Glass Door Kits. With holding forces tested to 1650 lbs., these EMLock 1500 Series Electromagnetic Locks provide extra high security. The epoxy-less design provides a superior appearance with an anodized aluminum or dark bronze finish on all sides. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws. EMLock are UL Listed and ANSI Grade 1 compliant. Field upgradeable with no need to ever remove a lock from the frame to upgrade or exchange internal components. Self-drilling and tapping sheet metal screws and 10-32 machine screws are included.
SPECIFICATIONS:
Holding Force: 1650 lbs. (748 kg)
Input Voltage: 12/24 Volts DC - Automatic Selection (Requires Filtered Power Supply)
Single EMLock
Current Draw: 670mA @ 12V DC; 350mA @ 24V DC
Dimensions: L = 11" (279 mm) x H = 2-3/4" (70 mm) x W = 1-9/16" (40 mm)
Weight: 11 lbs. (5 kg)
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

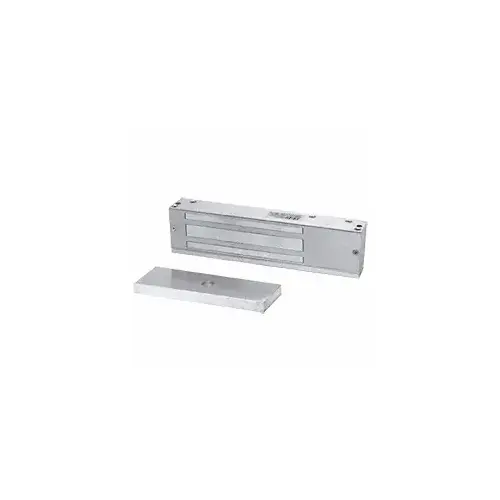

SDC SDC1511A EMLock Single Electromagnetic Lock with 1650 Pounds of Holding Force Aluminum Finish
Item #: SDC1511A by Security Door Controls - SDC
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 1650 Lbs. Holding Force
- Anodized Aluminum or Dark Bronze Anodized Finish
- ANSI/BHMA Grade 1 Compliant
- Field Upgradeable without Removal from the Frame
- Fully Automatic 12/24V DC Selection
- Limited Lifetime Warranty
- UL Listed
Body Length
11
Body Height
4-1/16, 4-1/16
Body Depth
1-9/16
Brand
SDC
Finish
Aluminum
Type
Electromagnetic Lock
Input
12 24 Volts DC Automatic Selection
Handing
Non Handed
Function
Magnetic Door Lock
UL Listed
Yes
Category
EMLock (R)
Certification
ANSI BHMA Grade One Compliant
Finish/Color
Aluminum
Series
1500
Strike Opening Height
2.75
Strike Opening Width
11
Product Type
Single Electromagnetic Lock
Product Overview
These CRL SDC EMLock 1500 Series Electromagnetic Locks offer the advantage of being totally adaptable to virtually any application utilizing Top Jamb or Glass Door Kits. With holding forces tested to 1650 lbs., these EMLock 1500 Series Electromagnetic Locks provide extra high security. The epoxy-less design provides a superior appearance with an anodized aluminum or dark bronze finish on all sides. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws. EMLock are UL Listed and ANSI Grade 1 compliant. Field upgradeable with no need to ever remove a lock from the frame to upgrade or exchange internal components. Self-drilling and tapping sheet metal screws and 10-32 machine screws are included.
SPECIFICATIONS:
Holding Force: 1650 lbs. (748 kg)
Input Voltage: 12/24 Volts DC - Automatic Selection (Requires Filtered Power Supply)
Single EMLock
Current Draw: 670mA @ 12V DC; 350mA @ 24V DC
Dimensions: L = 11" (279 mm) x H = 2-3/4" (70 mm) x W = 1-9/16" (40 mm)
Weight: 11 lbs. (5 kg)
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
